Ribbed-type Wire Wrapped Screen

Product Code: 2531
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Email:sales@ubooem.com

Description of Ribbed-type Wire Wrapped Screen


Ribbed-type wire wrapped screen, also called Stainless steel cylindrical wedge wire screens,round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The Ribbed-type wire wrapped screen is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

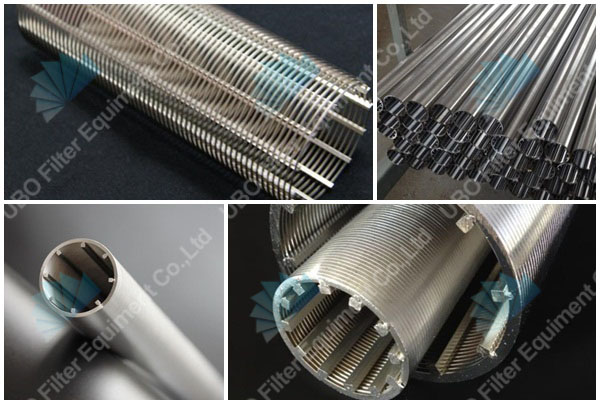

ribbed-type wire wrapped screen


Features of Ribbed-type Wire Wrapped Screen



It has characteristics such as exquisite controlled hole,high percentage of open area,strong integral strength,resistance to deformation,excellent resistance to corrosion and high reliability etc.



Applications of Ribbed-type Wire Wrapped Screen


Sphere of application of product: Screen can be used for casing completion and liner completion of vertical wells,inclined wells and horizontal wells etc.And it can be used for various oil wells,gas wells and water wells.It can be used as sand control colonnade individually and it can be used in gravel packing.

ribbed-type wire wrapped screen


Specification of the Ribbed-type Wire Wrapped Screen


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Ribbed-type Wire Wrapped Screen


Package: in wood case

Delivery Time:5-25 days.
