SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment

Product Code: 3624
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment


SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.

SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment


Features of SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment


1) High efficiency and high performance

2) Easy to move and install

3) Easy and convenient operation

4) Strong body


Applications of SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment


The continuous-slot well screen strainer is recommended in the following situations:

-- Formation comprised of small or fine particles

-- Water wells where gravel packs will be installed

-- Thin aquifers, where maximum open area is required

-- Small diameter wells

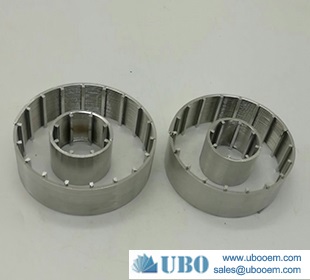

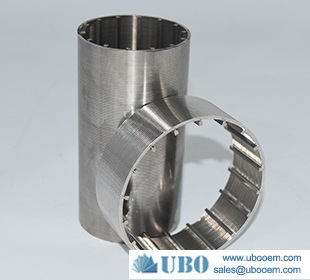

SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment

SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment

SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment

SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment

Specification of the SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment


SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

19mm-2000mm

ID Range

13mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc

Note

Customized According To Requirement

Production And Sales of SS 304 316 V Slot Wedge Wire wedge wire pipe for water treatment


Package: in wood case.
