Wedge Wire Wedge Wire Slot Screen Pipe for Water Well

Product Code: 3596
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment,beer brewing,mineral processing, coal-cleaning plant, refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire Wedge Wire Slot Screen Pipe for Water Well


Wedge Wire slot screen pipe is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

As we all know, the Wedge Wire bridge slot screen pipe is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire.

Applications

Petroleum industry. Oil filtration.
Water treatment industry. Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.
Chemical industry. End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.
Hydro-geological exploration.
Drilling construction.
Geothermal development.

Advantages of Wedge Wire bridge slot screen pipe

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

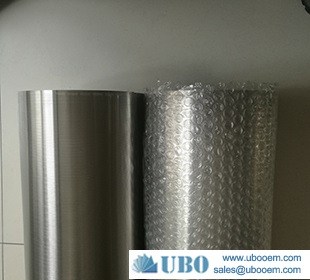

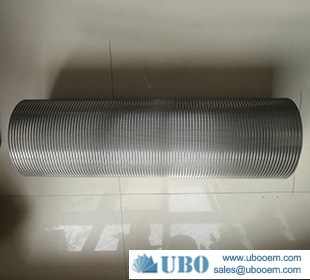

Wedge Wire wedge Wedge Wire bridge slot screen pipe used for water well

Wedge Wire wedge Wedge Wire bridge slot screen pipe used for water well

Wedge Wire wedge Wedge Wire bridge slot screen pipe used for water well

Wedge Wire wedge Wedge Wire bridge slot screen pipe used for water well

Specification of the Wedge Wire Wedge Wire Slot Screen Pipe for Water Well



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings
