Wedge Wire wedge wire screen pipe strainer

Product Code: 3652
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire wedge wire screen pipe strainer

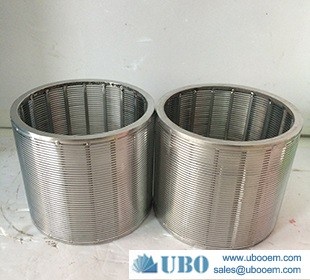

The Wedge Wire wedge wire screen pipe strainer is composed of rib strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure, 0.1mm slot gap, and can be select by client in any way.

principle of The Wedge Wire wedge wire screen pipe strainer





Benefits of Wedge Wire Wedge Wire Screen pipe strainer



-- V type wire, no plugged

-- No move part, simple to install

-- Low maintenance costs

-- Economical and applicable type, long life



Applications of Wedge Wire wedge wire screen pipe strainer



The Wedge Wire wedge wire screen pipe are mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries, water, oil or gas filter and other filtration equipment.

Wedge Wire wedge wire screen pipe strainer

Wedge Wire wedge wire screen pipe strainer

structure of Wedge Wire wedge wire screen pipe strainer

Specification of the Wedge Wire wedge wire screen pipe strainer



Material SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range 19mm-2000mm
ID Range 13mm-1981mm
Length Range Up to 6000 mm
Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)
Wedge Wire 0.5x1.5 0.75x1.5 1x2 1.5*2 2x3 2*4 3*5
Support Rod 1.5x2.5
2x3
1.5x2.5
2x3
1.5x2.5
2x3
1.8*2.5
2x3
2x3
2x4
3x5
3x6
3x10
4x7
2x4
3x5
3x6
3x10
4x7
5x6
3x5
3x6
3x10
4x7
5x6
5x8
End Finishing Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc
Note Customized According To Requirement

Production And Sales of Wedge Wire wedge wire screen pipe strainer


Package: in wood case

Delivery: 10-20 days
