Stainless Steel Resin Trap

Product Code: 3150
Category:Resin Traps
Material:stainless steel
Properties:wedge wire screen
Application:water treatment, oilfield, mining, chemical industry,liquid filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Stainless Steel Resin Trap


Stainless Steel Resin Traps are placed in a housing, inline with the flow to capture expensive media from traveling downstream. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly thus minimizing pressure loss through the system.

Your resin trap can be designed to suit either new or existing strainer bodies.

stainless steel resin trap

Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

Features of Stainless Steel Resin Trap

•Reduced costs, since wedge wire screens have a very long life.
•Greater resistance to stresses of different pressure and temperature.
•Maximum effective flow area & operating efficiency is maintained.
•Costly downtime for cleaning plugged screens is minimize.

Applications of Stainless Steel Resin Trap

water treatment, resin traps, oilfield, mining, food industry, chemical industry, paper making industry, decoration.

stainless steel resin trap

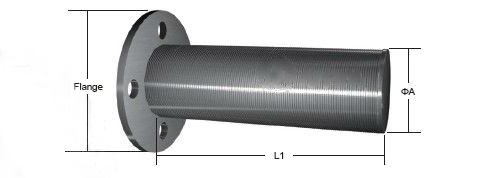

Specification of the Stainless Steel Resin Trap


stainless steel resin trap

Material: stainless steel

Surface Treatment: Polishing, chroming.

Product Structure:wedge wire screen cap.

Wire Diameter: 1.5x2mm, 2x3mm, etc.

Length: 0.5meters or as per your request.

Diameter: 80mm or as per your request.

Slot Size: 1mm also achieved upon request.

Conection:thread or flange

Production And Sales of Stainless Steel Resin Trap


Material and Sizes can be customized. Free Drawing and fast delivery are all available.
