Drum Screens

Product Code: 1885
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Drum Screens


Ubo offers a wide array of drum screens for water treatment. Please click on each product to find out more on each one.

Drum Screens are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded, with an unique welding process. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. V Wire Screen offers great strength, precision, long service life and a wide range.

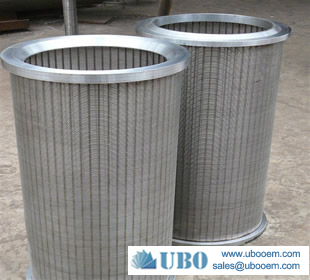

Drum Screens

Applications of Drum Screens

Wedge wire products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.

Advantages of Drum Screens

1. Many wing pieces, no winding, highly efficient rotary drum type rotor.
2. Pulp consistency can reach 2.5~4%, reduce water consumption and fiber loss of production process.
3. Heavy impurity discharge tube, ensure the security of the sieve drum operation.
4. Advanced structure, strong and durable, easy dismounting, low energy consumption, less wastage fiber.
5. Equipped with automatic oiling and mechanical seal water monitoring device, high degree of automation.
6. Compact structure, small power, high output.
7. 1 year warranty and best after-sale service

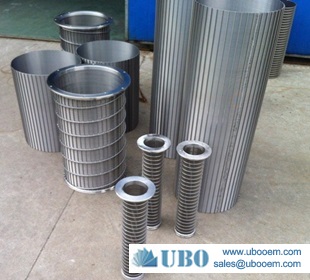

Drum Screens

Ubo also manufactures a continuous flow microfilter drum screen. This microfilter drum screen incorporates a mesh material for sludge thickening, solids and liquids separation, dewatering and fiber recovery.



Specification of the Drum Screens


Drum Screens

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded coupling

Production And Sales of Drum Screens


Drum Screens
