Wire Wrapped Screen

Product Code: 1824
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Wire Wrapped Screen

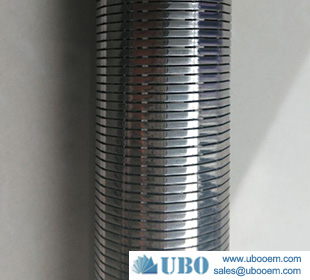

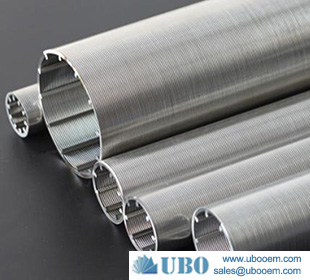

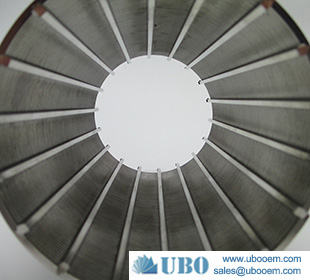

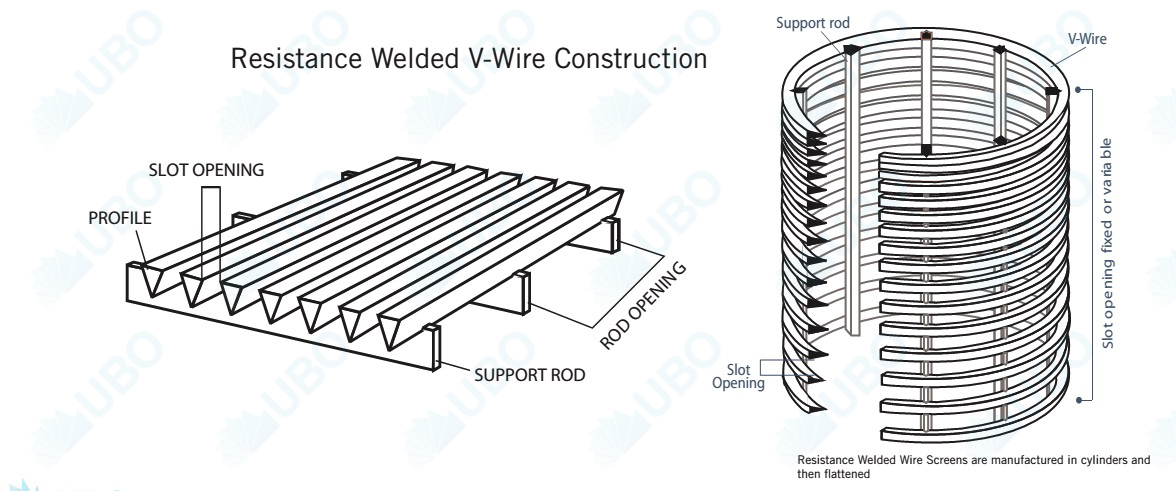

    Welded Wedge wire Wedge Wire screen filter pipe is manufactured by a V or wedge shaped wire around an internal array of longitudinal support rods. Each intersection point of this wire is fusion welded. The V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities while at the same time keeps the majority of sand and gravel out of the well.

Wire Wrapped Screen

Application for Wire Wrapped Screen:

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.
Used for fiber removal in Starch industry.

Advantages for Wire Wrapped Screen:

High mechanical strength can bear large pressure drop.
Equal slots for filtering can form equally distributed filter cake.
The wedge type slot can improve backflushing and regeneration performance.
It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.

Wire Wrapped Screen

Specification of the Wire Wrapped Screen


Wire Wrapped Screen



Surface profiles Support profiles Min.diam. in mm Min. slot width in mm
10S Q25 21 0.10
11S Q20 or Q25 23 0.030
12S 22S 30 0.050
12S Q25 23 0.030
12S Q35 30 0.050
18S 22S or Q35 30 0.050
18S Q25 25 0.030
18S D45 300 0.20
18S 10x3 300 0.20
22S 22S or Q35 45 0.10
22S D45 or 10x3 or 25x3 300 0.20
28S Q35 215 0.20
28S D45 or 10x3 or 25x3 300 0.20
34S Q35 300 0.20
34S D45 300 0.20
34S 10x3 or 25x3 300 0.20
42S Q35 or D45 300 0.20
42S 10x3 or 25x3 300 0.20

Production And Sales of Wire Wrapped Screen
