V Wire Wrapped Screen Pipe for Wastewater Treatment

Product Code: 3657
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of V Wire Wrapped Screen Pipe for Wastewater Treatment


SS v wire wrapped screen pipe, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The SS Wedge v wire wrapped screen pipe is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

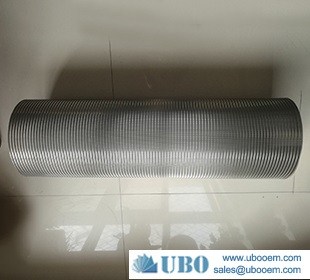

details of SS Wedge v wire wrapped screen pipe for wastewater treatment

Features of SS V Wire Wrapped Screen Pipe for Wastewater Treatment

1) Accurate filtering performance.

2) High efficiency.

3) Narrow slot openings.

4) Normal or high grade type for choice.

5) Various edge types.

6) Wide range of diameters for choice.

7) Special sizes can be customized.

8) Economical but high grade.

9) Corrosion resistance.

10) Rust resistance.

11) Long service life and durable.

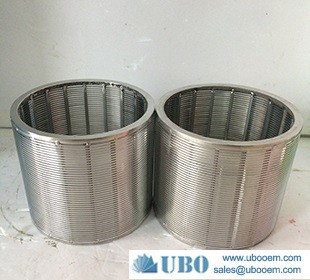

SS Wedge v wire wrapped screen pipe for wastewater treatment

Applications of SS V Wire Wrapped Screen Pipe for Wastewater Treatment

1) Petroleum industry: Oil filtration.

2) Water treatment industry: Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.

3) Chemical industry: End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.

4) Hydro-geological exploration.

5) Drilling construction.

6) Geothermal development.

SS Wedge v wire wrapped screen pipe for wastewater treatment

Specification of the V Wire Wrapped Screen Pipe for Wastewater Treatment


SS Wedge v wire wrapped screen pipe for wastewater treatment

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

Production And Sales of V Wire Wrapped Screen Pipe for Wastewater Treatment


SS Wedge v wire wrapped screen pipe for wastewater treatment
