Slot wire screen

Product Code: 1810
Category:Wedge Wire Screen Cylinders
Material:stainless steel304,316,316L
Properties:Wedge Wire Screen
Application:Filtration,industry

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Slot wire screen

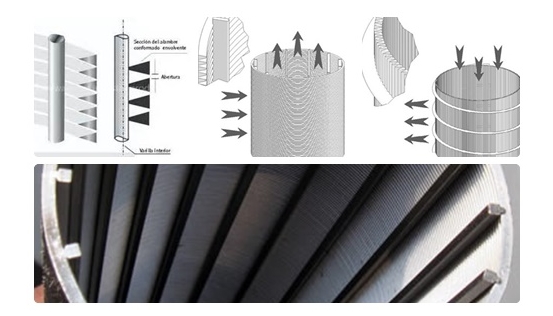

Slot wire screen is made from round wire which is first looped at regular pitched intervals and then pressed into deep wedge shaped section.

The loops themselves are pressed so as to produce at each side accurately sized shoulders which butt together when the wires are assembled.

The individual slot wires are built into panels by threading cross rods of suitable diameter through the loops on the wires.

Feature of Slot wire screen

1.Up to 60% or more free open entry area
2.Installation possible to depths of 2000 m
3.Smaller diameters can be drilled as gravel packing is not necessarily required
4.The slogs can't be clogged due to wedgeshaped surface wires
5.high quality , lower price , fastest delivery

Applications of Slot wire screen

Slot wire screen is particularly suitable for making up into large floor areas. The unique properties of our looped wedge floors provide a smooth surface, uniform and accurate slots and mechanical strength unrivalled by other systems.

                      Slot wire screen

Announcement:


If you can envision it,We can supply it. TEL:0086-318- 5183240 E-mail:sales@ubooem.com

·          Ubo will do everything possible to provide exact and full product information based on metal mesh for your information.

·          In order to give customer a clear image of the product,Ubo has taken some pictures, customer can dowmload for reference but using our picture for business is forbidden.

·          Due to technique and other factors,product image might be slight different to the products itself,in case everything will follow the products.

·          Ubo appreciate any suggestion on our product information or picture or anything else.

Specification of the Slot wire screen


The loops themselves are pressed so as to produce at each side accurately sized shoulders which butt together when the wires are assembled.

The individual slot wires are built into panels by threading cross rods of suitable diameter through the loops on the wires.

SIZE
(inch)
O.D
(mm)
SLOT
(inch)
LENGTH
(m)
Collapse
Strength
(psi)
Tensile
Weight
(ton)
Wire size
(mm)
RODS (mm)
4 117 0.040 3 395 6 2.2*3.0 3.8mm/22
4 114.3 0.040 3 395 6 2.3*3.0 3.8mm/22
6 168.3 0.040 3 252 8 2.3*3.5 3.8mm/32
8 219.1 0.010 3 399 10.5 3.0*5.0 3.8mm/48
8 219.1 0.020 3 370 10.5 3.0*5.0 3.8mm/48
8 219.1 0.040 3 323 10.5 3.0*5.0 3.8mm/48
10 273.1 0.010 3 206 11 3.0*5.0 3.8mm/50
10 273.1 0.020 3 191 11 3.0*5.0 3.8mm/50
10 273.1 0.040 3 167 11 3.0*5.0 3.8mm/50

Production And Sales of Slot wire screen


Slot wire screen is particularly suitable for making up into large floor areas. The unique properties of our looped wedge floors provide a smooth surface, uniform and accurate slots and mechanical strength unrivalled by other systems.Packing & transport
