wedge channel screens

Product Code: 1884
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:water filtration,liquid filtration,industry filtration,food filtration

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of wedge channel screens


We offer a reliable and efficient range of Stainless Steel Wedge Wire Filter Cartridges. Our offered products are extensively demanded by various industries and are manufactured in accordance with the industry set norms and guidelines. Post-production, we test each product on various stages to give our clients.

Application for wedge channel screens

deep well , water well , geothermal well , tube well , oil and gas exploration well , irrigation well , resident and industrial using well

Feature for wedge channel screens

1.Up to 60% or more free open entry area
2.Installation possible to depths of 2000 m
3.Smaller diameters can be drilled as gravel packing is not necessarily required
4.The slogs can't be clogged due to wedgeshaped surface wires
5.high quality , lower price , fastest delivery

Characteristics for wedge channel screens

1. Custom Designed and Engineered
Each project is specifically designed to ensure complete satisfaction. We provide guidance and support from project concept to completion.
2. Longer lasting.
Johnson Screens, whose manufacturing standards are the most stringent in the industry, are extremely durable and have high resistance to abrasion, corrosion and impact damage.
3. Lower Maintenance.
The rugged construction and high quality of materials make possible a product that lasts longer and requires less maintenance.
4. Less Costly.
Superior operating efficiency, extended service life and reduced main-tenance needs combine to reduce the true cost of Johnson screens to plant operators.



Specification of the wedge channel screens


wedge wire

Material:
stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70
Support Rod (mm):
Width : 1.00 1.80 2.00 3.00 4.00 5.00
Height : 2.00 2.50 3.00 5.00 6.00 8.00
Diameter:
Width Up To 2.5 meters
Length:
lengths up to 6 meters.
Slot size:
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note:
Other specifications can be customized according to your requirement

Specification of<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' _cke_saved_href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' _cke_saved_href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' _cke_saved_href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' _cke_saved_href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' _cke_saved_href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' _cke_saved_href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' _cke_saved_href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' _cke_saved_href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'><a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a></a>

specification (wedge wire ):

Wedge Wire Screen

specification (support rod):

Wedge Wire Screen

Note: this is the normal wire, others could customized



Outside Diameter Profile wire Rod wire Rod quantity Slot size Length
DN Inch mm mm mm   mm mm
20 3/4 26.9 1.5*2 2*3 12 0.1~0.25 45~3000
25 1 33.7 1.5*2 2*3 14 0.1~0.25 45~3000
32 1~1/4 42.4 1.5*2 2*3 16 0.1~0.25 45~3000
40 1~1/2 48.3 1.5*2 2*3 16 0.1~0.25 45~3000
50 2 60.3 1.5*2 2*3 18 0.1~0.5 45~3000
65 2~2/2 76.1 1.5*2 2*3 20 0.1~0.5 45~3000
80 3 88.9 1.8*2.5 2*3 24 0.1~0.5 45~3000
100 4 114.3 1.8*2.5 2*3 30 0.5~2 1000~6000
125 5 139.7 2.3*2.7 2*3 36 0.5~2 1000~6000
150 6 168.3 2.3*2.7 3*5 44 0.5~2 1000~6000
200 8 219.1 3.3*4.5 3*4.7 56 0.5~2 1000~6000
250 10 273 3.3*4.5 4*6 66 0.5~2 1000~6000
300 12 323.9 3.3*4.7 4*6 72 0.5~2 1000~6000
350 14 355.6 3.7*5 4*6 80 0.5~2 1000~6000
400 16 406.4 1.5*2 2*3 94 0.1~2 1000~6000
450 18 457 2*3 4*5 112 0.1~2 500~400
500 20 508 2*3 4*5 124 0.1~2 500~400
550 22 559 2*3 4*5 140 0.1~2 500~400
600 24 610 2*3 4*5 156 0.1~2 500~400
Siot:0.1mm~2mm    Tolerance:0.05

Production And Sales of wedge channel screens


UBO Filter Equipment Company is specialty in the filter and sieve equipment production and exporting. We have

10 years OEM ,ODM, and filters design experience.

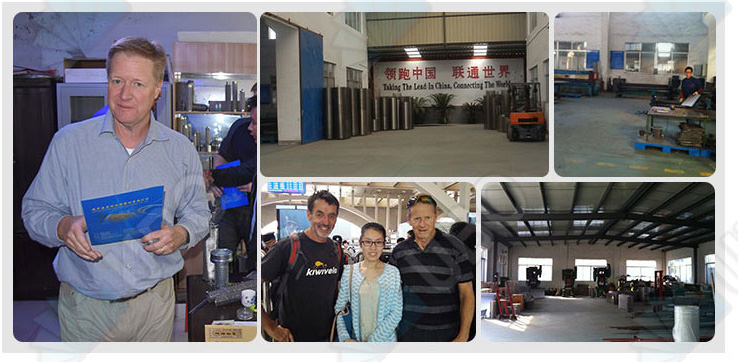

Factory Show

The Wedge Wire Products Production Process:

Raw Material-Profile Wire Production-ProductionSurface Treatment-Welding The Fittings-AdjustmentQC-Packing-Shipping



Package Show

1.Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
2.We have a very trust forwarding company cooperate for long time and establish a solid partnership,of course,you can also arrange forward to take products from our factory.
