| Category: | Wedge Wire Screen Cylinders |
| Material: | stainless steel |
| Properties: | wedge wire screen |
| Application: | Filtration |

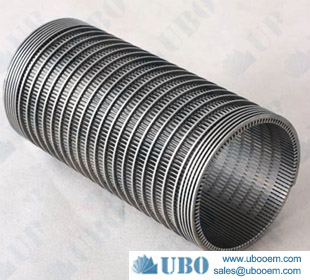

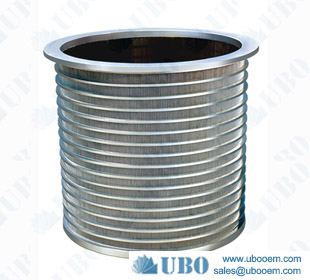

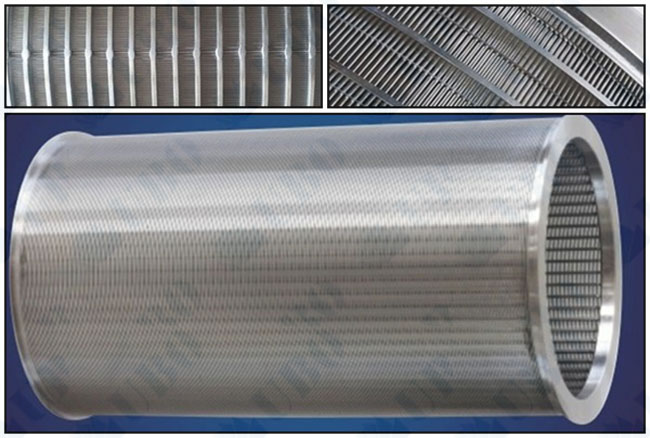

Packaged Treatment Plant is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.
1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits
The Packaged Treatment Plant are widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.
Wedge wire cylinder diameter is from 25mm to 1500mm.
Wedge wire cylinder length is from 0.3m to 12m.
For wedge wire cylinder, profile wire is generally triangle wire;
support rod includes triangle wire,round rod,flat wire etc
|
Specification (wedge wire):
|
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
|
Specification (support rod):
|
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
|
|
Note: other specifications available as per request
|
|
|
Slot size
|
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
|
|
Material:
|
galvanized low carton (LCG), stainless steel (304,316 etc.)
|
|
Length
|
up to 6 meters.
|
|
Diameter
|
from 25mm to 1200mm.
|
|
End connection
|
Plain beveled ends, flanged or threaded couplings
|
