flat panel screen

Product Code: 2712
Category:Sieve Plate Screen
Material:stainless steel
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of flat panel screen


UBO'S All flat panel screens are used for wide range of applications such as sizing, classification and de-watering.These are used for coal & iron ore beneficiations when fitted on the vibratory machine.

There are three basic reasons why Johnson stainless steel screen panels are so widely used in mineral processing vibrators :

They're extremely dependable. Effective sizing or classifying requires uniform slots in the screen. Our screen panels are manufactured with a slot tolerance of + 0.05 mm in increments of 0.05 mm to assure dependable process results.

They're very strong:The screen panels in flat deck applications are made with rectangular support bars which enables the panel to span longer distances without intermediate support bars.
They are effective: Welding each surface wire at every junction with support rods creates a rigid structure that transmits vibratory forces more effectively with less energy loss.

Operators from coal preparation plants, iron ore mines, food processing and other industries reports high success rates with Haixing vibratory panels/screens.

UBO screen panels are manufactured with an edge finish and variety of framing methods to suit your various needs.

flat panel screen

Feature of flat panel screen

1.Higher % age of Open Area.
2.Betters Strength.
3.Longer Service Life & better wear resistance.
4.Easy to Install & replace.
5. Flexibility in design.

Application of flat panel screen

The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, Decoration and other industries

flat panel screen

Specification of the flat panel screen


flat panel screen

Name:

Wedge wire screen panel

Material:

stainless steel (304,316etc.)

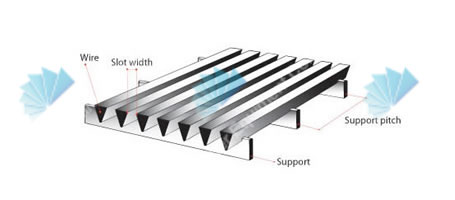

Wedge Wire (mm):

Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70

Height : 1.50 2.00 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 1.00 1.80 2.00 3.00 4.00 5.00

Height : 2.00 2.50 3.00 5.00 6.00 8.00

Width:

from 1 inch -----45 inch.

Length:

lengths up to 6 meters.

Slot size:

0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved request.

Pitch:

10-300mm

Note:

Other specifications can be customized according to your requirement
