Wedge wire screen arc sieve bend screen plate for waste water equipment

Product Code: 3658
Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge wire screen arc sieve bend screen plate for waste water equipment


Wedge wire screen arc sieve bend screen plate consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. Stainless steel v wire curve screen panel has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.



Advantages of Wedge Wire Screen Sieve Bend Screen Plate for Waste Water Equipment



-- A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

-- A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening.

-- Offering great strength. precision, long service life.



Application of Wedge Wire Screen Sieve Bend Screen Plate for Waste Water Equipment



This Sieve Bend Screen is commonly used in food processing and corn wet milling plants. In the corn wet milling process, CP Screens precisely manufactures the 120 Degree DSM Screen which is simple in shape, just like the common Sieve Bend Screen, however its very fine slot openings commonly 75 and 100 µm, are very critical.

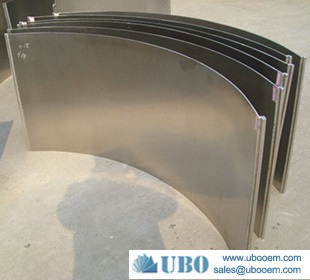

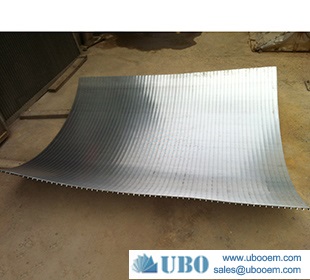

detail of Wedge wire screen arc sieve bend screen plate for waste water equipment

Wedge wire screen arc sieve bend screen plate for waste water equipment

Specification of the Wedge wire screen arc sieve bend screen plate for waste water equipment


Wedge wire screen arc sieve bend screen plate for waste water equipment

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2.5

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5*2.5

2x3

2x3

3*5

3x5

3x5

4*6

5*8

Angle

90°,120°,140°,150°,160° etc.

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Frame

No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.

Note

Customized according to requirement

Production And Sales of Wedge wire screen arc sieve bend screen plate for waste water equipment


Package: in wood case

Delivery: 10-20 days
