Wedge Wire Arc Curved Screen Plate

Product Code: 3825
TAGS:
Category:Basket Filters
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:
Application:

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of Wedge Wire Arc Curved Screen Plate


Wedge Wire Arc Curved Screen Plate is called Wedge Wire wedge wire hillside screen ,sieve bend screen and DSM screen etc ,are widely used in various industries, especially suitable for low maintenance applications as sieves and filters. It’s a new type filter component fabricated from the Fine Mesh Slot Opening Stainless Steel Wedge Wire filtration products.

The sieve bend screen plate can be re-used repeatedly. The precise filter ratings are from 20 micrion. Besides of this flat one, SLOT-CHINA screen filter are also available in the form of tubes, panels, filter cylinders and bags and special filter elements. It is made by welding with profile wire on every connection spots.

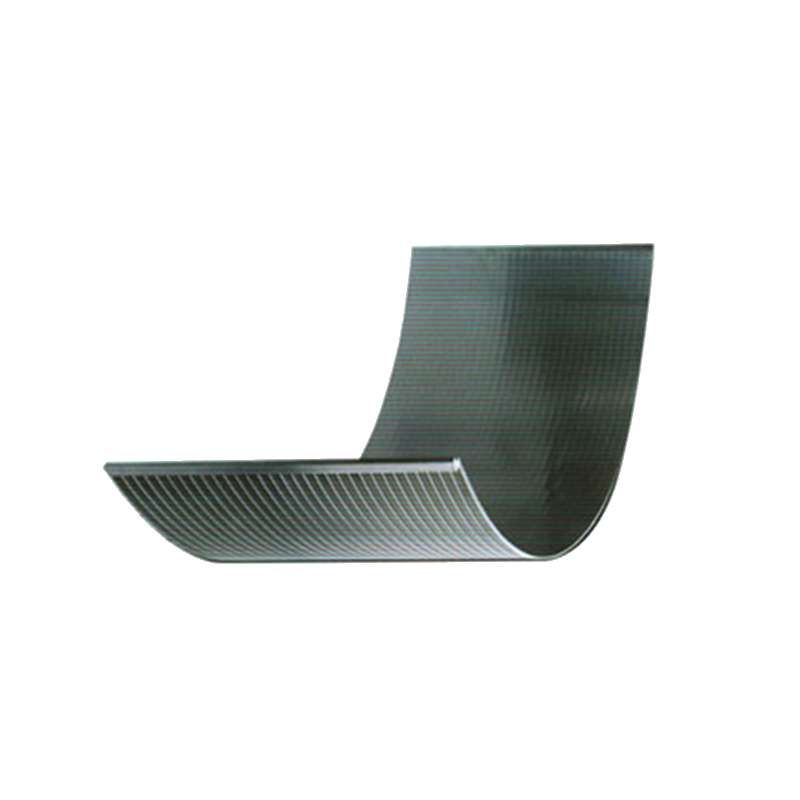

SS wedge wire arc curved screen plate

SS wedge wire arc curved screen plate

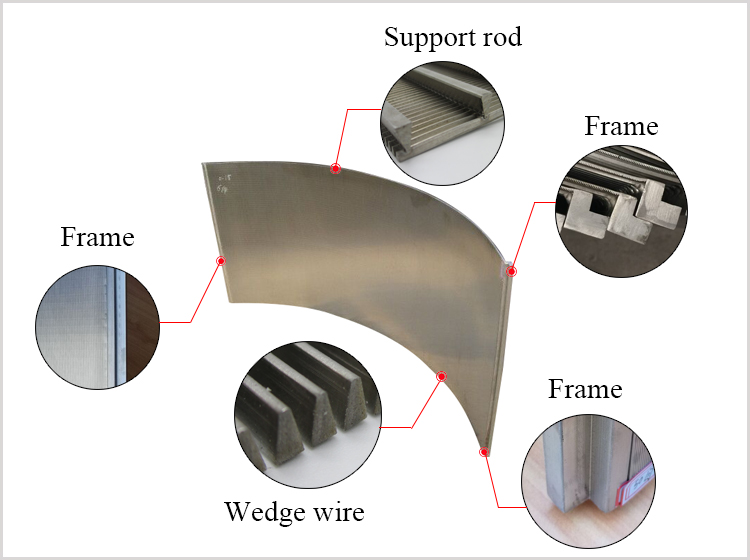

Features of Wedge Wire Arc Curved Screen Plate

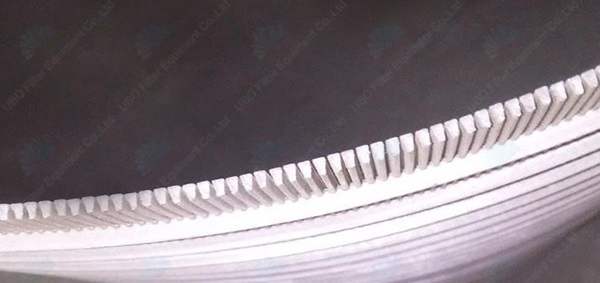

Wedge Wire Dsm Sieve Bend Screen For Water and Effluent Treatment is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.



Applications of Wedge Wire Arc Curved Screen Plate



Sieve Bend Screens are also referred to as DSM Screens. These screens are mainly used for liquid / solid separation and manufactured to suit a wide range of industries such as:

-- Sugar Processing.

-- Pulp & Paper.

-- Coal Mining & Quarrying.

-- Mineral Processing.

-- Cement.

-- Industrial & Urban Effluent Treatment.

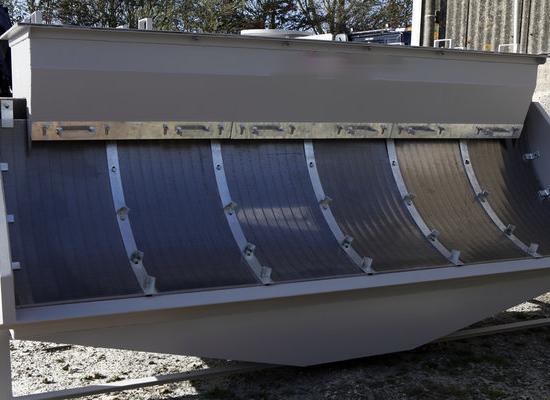

Applications of Wedge Wire Arc Curved Screen Plate

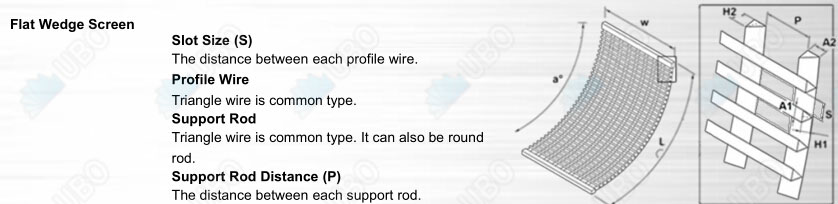

Specification of the Wedge Wire Arc Curved Screen Plate

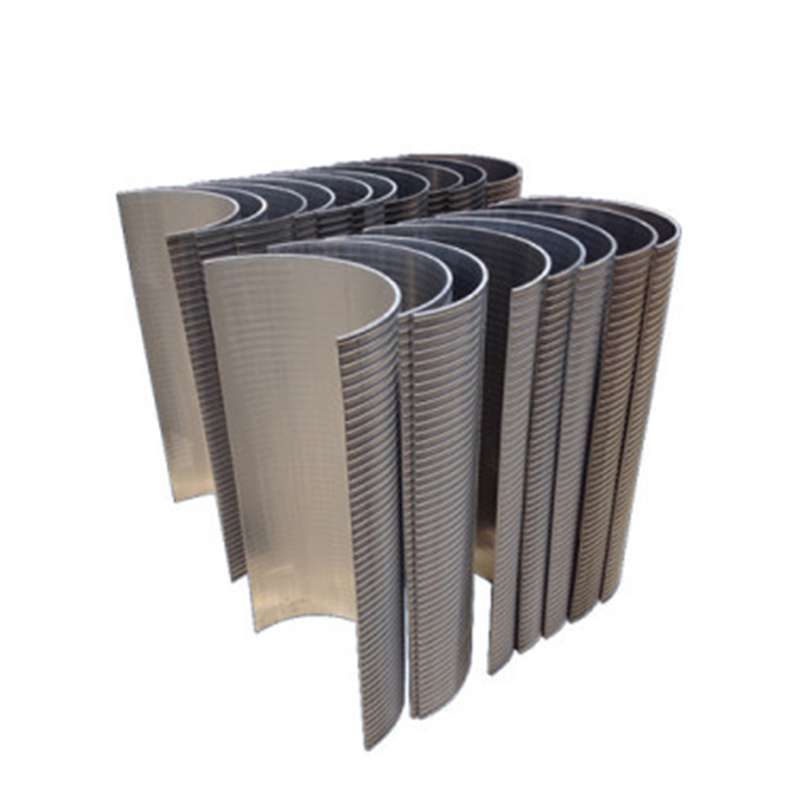

SS wedge wire arc curved screen plate



Item Technical Specification
1 Sieve
Width(mm)
605 800 1000 1200 1500 1800 2000
2 Sieve Length(mm) 800 800 800 800 800 800 800
3 Sieve angle(mm) 50° 50° 50° 50° 50° 50° 50°
4 Flow rate(m3/h) 15-25 45-85 55-110 65-130 80-160 100-180 120-220

Production And Sales of Wedge Wire Arc Curved Screen Plate


Package: in wood case

Delivery: 10-20 days
