Flat Panel Screen

Product Code: 1823
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

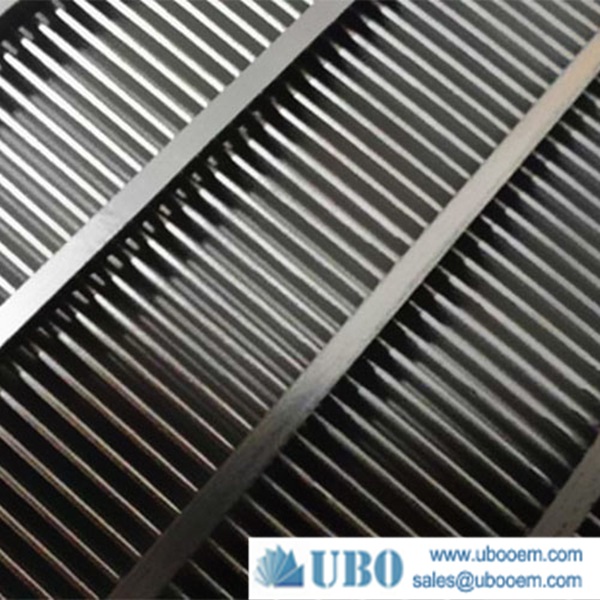

Description of Flat Panel Screen

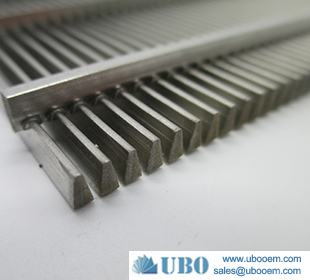

Flat wedge wire screen panel / stainless steel material welded wedge wire screen / flat welded screens in a large variety of surface and support wire combinations, that can be applied for simple screen plates to heavily reinforced reactor internals.

Flat Panel Screen



Application for Flat Panel Screen:



The Johnson wedge wire water well filter screen are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.



Characteristic for Flat Panel Screen:



1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

Flat Panel Screen

Specification of the Flat Panel Screen


Flat Panel Screen


Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.

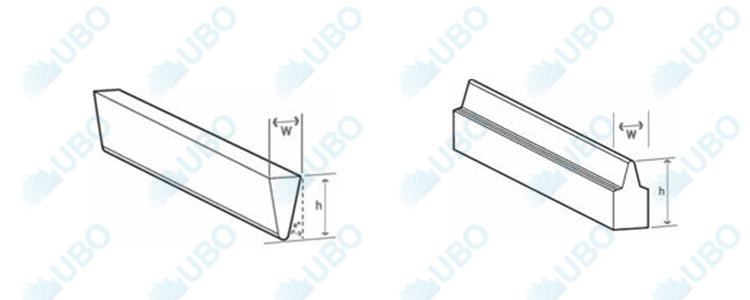

Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.

Production And Sales of Flat Panel Screen


Package: in wood case

Delivery: 10-20 days
