Welded Metal Water Filter Screen

Product Code: 2460
Category:Wedge Wire Screen Cylinders
Material:SS wire,Low carbon steel,High Mn wire
Properties:wedge wire screen
Application:Widely uses in mine, coal, oil, fertilizer, grain, salt, and environmental protection industries.

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

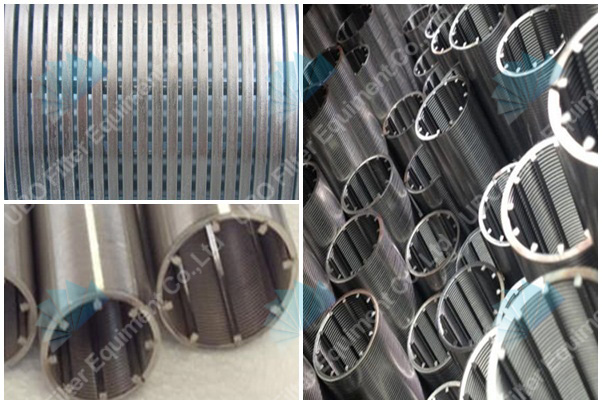

Description of Welded Metal Water Filter Screen


Welded Metal Water Filter Screen, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.
As we all know, the wire wrap V shaped screen pipe is composed of surface profiles and support profiles. The wire type of surface profile is commonly triangular wire, which is also called V-shaped wire. The support wire can be triangular wire, round wire and trapezoid wire.

Characters of Welded Metal Water Filter Screen

Welded Metal Water Filter Screens are new products in the line of wire mesh.  They have the characters of easy leakage, corrosion resistant, abrasion resistant. It is strong to be acidproof, alkali resisting, bear high temperature, pulling force etc.

Applications of Welded Metal Water Filter Screen

 Widely uses in mine, coal, oil, fertilizer, grain, salt, and environmental protection industries. For filtering of liquid, the powder material. On petroleum, chemical industry, metallurgy, mine, medicine purifies, the drilling mud purifies the equipment in particular the important fitting.

Welded Metal Water Filter Screen

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the Welded Metal Water Filter Screen


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings


We are manufacturer for producing filter mesh products, we can produce according to your requirements.

Production And Sales of Welded Metal Water Filter Screen




Packaging Detail: Water proof paper inside then in wooden case or as your requirement
Delivery Detail: Within 25 days after receiviong full payment by T/T
