V slot wedge wire stainless steel Wedge Wire Screen tube filter pipe

Product Code: 3650
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of V slot wedge wire stainless steel Wedge Wire Screen tube filter pipe


The V slot wedge wire stainless steel Wedge Wire Screen tube filter pipe is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.


Features of V slot wedge wire stainless steel Wedge Wire Screen tube filter pipe


1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits


Application of V slot wedge wire stainless steel Wedge Wire Screen tube filter pipe


The wedge wire screen pipe are widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

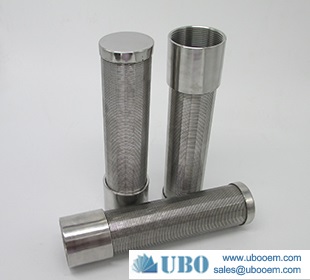

V slot wedge wire stainless steel<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> tube filter pipe

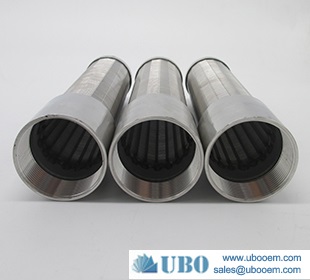

V slot wedge wire stainless steel<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> tube filter pipe

Specification of the V slot wedge wire stainless steel Wedge Wire Screen tube filter pipe


SS 304 316 V shaped wire <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tube for screening

SS 304 316 V shaped wire wedge wire screen tube
Material: Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging from 1 inch -----45 inch.
Length: lengths up to 6 meters.
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Production And Sales of V slot wedge wire stainless steel Wedge Wire Screen tube filter pipe


Package: in wood case

Delivery: 10-20 days
