Stainless steel Wedge Wire Screen tube for ground water

Product Code: 3633
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire pipe
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless steel Wedge Wire Screen tube for ground water


Stainless steel Wedge Wire Screen tube is composed of ribs and V—winding wire, manufactured with advanced special welding equipment.Ribs and V—winding wire are connected with resistance weld by special equipment and has the advantages, such as, high welding strength, homogeneous gap, corrosion resistance, large effective filtration area, good permeability,simple structure, and slot size is 20 micron or larger for users to choose freely.



Applications of Stainless steel Wedge Wire Screen tube for ground water



This filter is applied to oil sol ution containing wax oil and asphalt or with high viscosity, it is widely applied in water treatment coarse and precise filtration of various industries, such as, power oil wells, gas wells, chem ical, mining, paper making, environmental protection, metallurgy, sand—proof, decorative.



Advantages of Stainless steel Wedge Wire Screen tube for ground water



• High mechanical strength to withstand greater pressure difference.

• The homogeneous filtration gap forms a relatively homogeneous cake to facilitate backwash regeneration.

• Wedged gap can improve backwash regeneration capacity.

• Pressure, temperature, aging and corrosion—resistant, suitable for all kinds of fluids.

• Metal wedged wire mesh is adopted as filter element and has the advantages, such as, high mechanical strength, high g reater pressure difference, easy cleaning, and regeneration. Al most two—dimensional filter mesh have no par— ticle packing dead space, the wedged gap can gather energy when backwashing, with good resuIt.

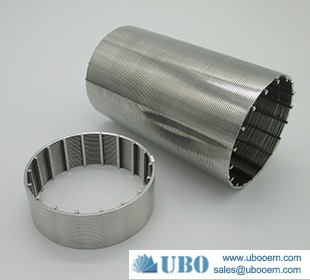

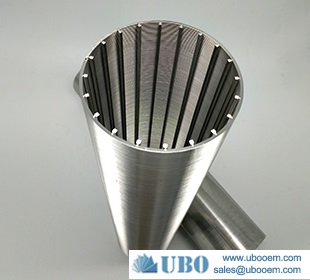

Stainless steel<a href='http://www.ubooem.com/Wedge-Wire-Screen-1-8.html' target='_blank'> Wedge Wire Screen</a> tube for ground water

Specification of the Stainless steel Wedge Wire Screen tube for ground water


SS 316 Wedge Wire Wedge wire screen tube

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

19mm-2000mm

ID Range

13mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc

Note

Customized According To Requirement

Production And Sales of Stainless steel Wedge Wire Screen tube for ground water


Package: in wood case

Delivery: 10-20 days
