Sieve Bend Screen

Product Code: 2829
Category:Sieve Bend Screen
Material:stainless steel
Properties:Sintered Filter
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

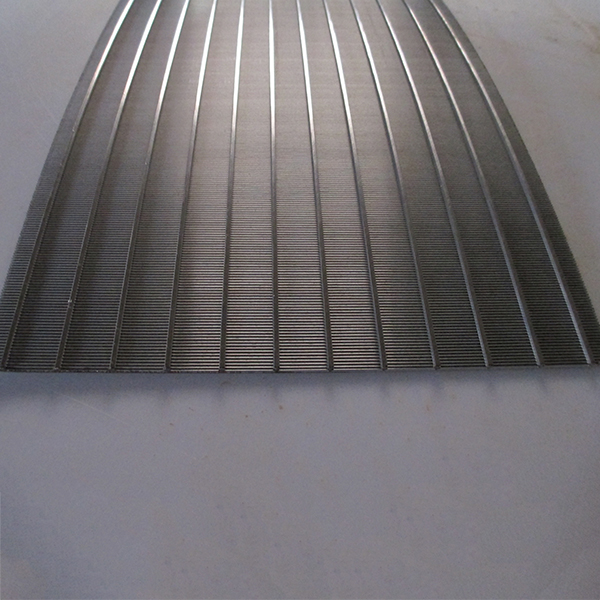

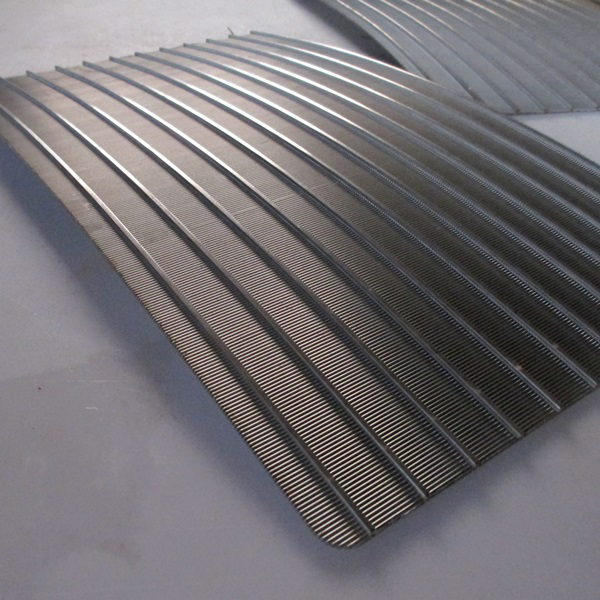

Description of Sieve Bend Screen


Sieve Bend Screen consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow.Sieve Bend Screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

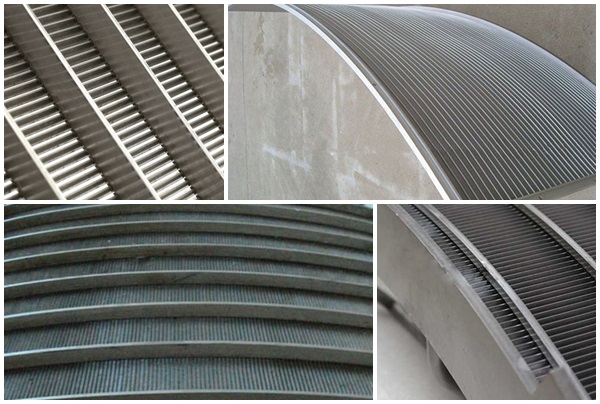

Sieve Bend Screen

Application of Sieve Bend Screen

V- Wire Screen is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

Advantages of Sieve Bend Screen

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Specification of the Sieve Bend Screen


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

15º  30º   60º  120º and as your special request

Production And Sales of Sieve Bend Screen


Sieve Bend Screen
