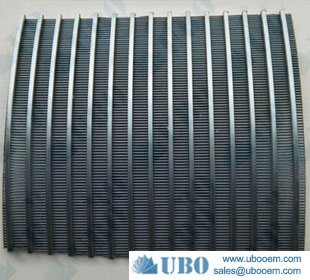

fine wire sieve bend screen

Product Code: 1852
Category:Sieve Bend Screen
Material:stainless steel
Properties:wedge wire screen
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of fine wire sieve bend screen


The fine wire sieve bend screen, also known as the wedge wire run down screen, wedge wire side hill screen, DSM screen, Parabolic screen, wedge wire curve screen and so on. The sever bend screen could be custom made and designed according to the application. They are usually used to separate solids from liquids. The curved screen of sieve bend provides greater capacity than flat wedge wire screen due to increased gravitaonal forces on material frowing against the curve.

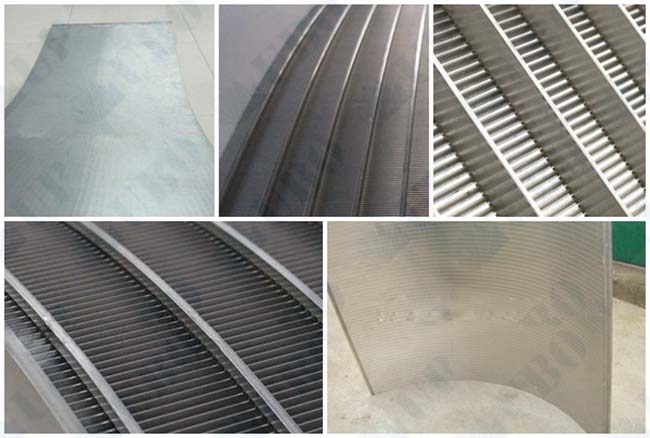

fine wire sieve bend screen

Specification of the fine wire sieve bend screen

·Various Material could be choose, AISI304, AISI316L, AISI430, AIDI201 and so on.
·Any size could be custom made
·Slot could be also custom made, the minimum is 0.02mm.
·Every kind profile wires are available
·Various support rod could be used
·Custom made angle
·Could weld the frame as request

Specification of the fine wire sieve bend screen


Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

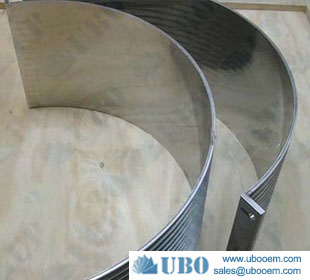

Production And Sales of fine wire sieve bend screen


fine wire sieve bend screenfine wire sieve bend screen
