Drum sieve screen for sand

Product Code: 2462
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Drum sieve screen for sand


The drum sieve screen provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Advantages of Drum sieve screen for sand

Drum sieve screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.

Features of Drum sieve screen for sand

1. Configured for economical & efficient classification, Screening and grading

2. Heavy duty trommel drum with lifters at the front to facilitate material break up

3. Screen replaceable for different mesh sizes

4. Multiple screen size

5. Easily changed screen plates

6. Largest processing capacity in the industry

7. Unique screen design, result in higher capacities, longer screen life and no material clogging

8. Heavy duty feed hopper and extension

9. Discharge chute

10. Gear drive mechanism

11. Variable speed drive mechanism

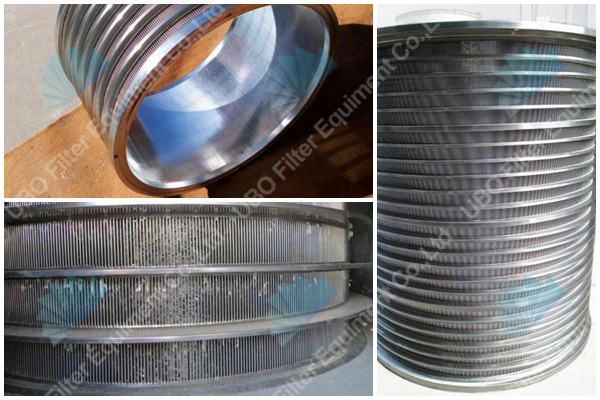

Drum sieve screen for sand

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the Drum sieve screen for sand


Model

Capacity (t/h)

Power (kw)

Drum diameter (mm)

Drum length (mm)

Screen size (mm)

Dimension (mm)

Weight (kg)

GT1015

50

4.0

1000

1500

<3~10

3000*1400*2145

2200

GT1020

100

5.5

1000

2000

3460*1400*2145

2800

GT1225

160

7.5

1200

2500

4146*1600*2680

4200

GT1530

250

11

1500

3000

4460*1900*2820

5100

GT1545

350

15

1500

4500

5960*1900*3080

6000

GT1848

450

22

1800

4800

6500*2300*4000

7500

GT2055

600

30

2000

5500

7500*2500*4000

8600

Production And Sales of Drum sieve screen for sand




Packaging Detail: Standard container,in bulk with seaworthy packaging or as the clients' request
Delivery Detail: 15-30 days, or depending on the order
