ASTM316L wedge wire laterals screen for sand filters

Product Code: 2872
Category:Header-Lateral
Material:stainless steel
Properties:water treatment filter
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

Email to Us Start Order


Author: Yolanda Cao
Email:sales@ubooem.com

Description of ASTM316L wedge wire laterals screen for sand filters


About ASTM316L wedge wire laterals screen for sand filters

UBO ASTM316L wedge wire laterals screen for sand filters consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications

Wedge wire laterals screen for sand filters are carefully designed from your specified design conditions that includes the vessel inside diameter, volumetric flow rate, allowable pressure drop through the screen, resin/media to be retained and minimum open area to list. Therefore it is very important to work closely with CP Screens during the design and engineering stage to ensure that all screen characteristics are accommodated for.

ASIM316L wedge wire laterals screen for sand filter

UBO wedge wire laterals screen for sand filters Hot Selling arean :

Malaysia ; Singapore ; Philippines ; Vietnam; India ; Turkey ; Kuwait;
Poland ; Holland ; Bulgaria ; Macedonia ;
The USA ; Australian ; Brazil ; Romanian ;
Saudi Arabia ; Iran ; Thailand ; Pakistan ; South Africa;

UBO is specialized in producing and distributing filter, filter element,polymeric filter,filter strainer,wedge wire screen etc. Welcome to contact us for more information and cooperation.0086-0311-83289301

Specification of the ASTM316L wedge wire laterals screen for sand filters


General Specification of the ASTM316L wedge wire laterals screen for sand filters

ASTM316L wedge wire laterals screen for sand filters

Usage: Liquid Filter

Type: Filter Cylinder

Material: Metal

Hole Shape: Square

Filter Rating: more than 90%

Slot gauge: 0.05, 0.1, 0.2, 0.3, 0.5, 1.0.......

hub lateral length: as per customer's requirement

filtering pipe length: as per customer's requirement

connection: flange or thread
1.material: stainless steel and Hastelloy C
2.supply detail and professional drawing
3.to confirm slot size as per flux

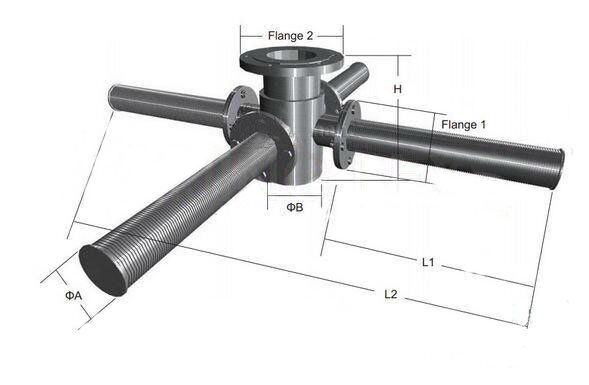

Drawings of the ASTM316L wedge wire laterals screen for sand filters

ASTM316L wedge wire laterals screen for sand filters

ASTM316L wedge wire laterals screen for sand filters

Normal Specification of the ASTM316L wedge wire laterals screen for sand filters

Mould

Nominal Diameter

Branch Pipe Diameter

Branch Quantity

Protopipe











UBOWD-150

1500

45-76

4-12

DN100











UBOWD-200

2000

45-76

4-12

DN125











UBOWD-250

2500

57-89

4-12

DN150











UBOWD-300

3000

57-108

4-12

DN200











UBOWD-320

3200

57-108

4-12

DN200









Production And Sales of ASTM316L wedge wire laterals screen for sand filters


ASTM316L wedge wire laterals screen for sand filters

Packaging Details: waterproof film into the wooden case in the container; waterproof film in bulk in the container; as per customer's requirements.
Delivery Detail: 15-20 days when receiving the bargain money

ASTM 316L wedg ewire laterals screen for snd filters
