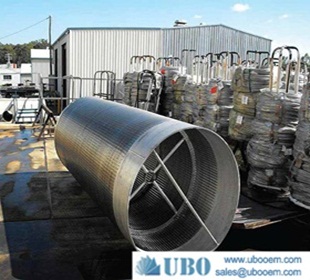

Drum sieve screen for sand

Product Code: 2801
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:Stainless Steel Filter element
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Email:sales@ubooem.com

Description of Drum sieve screen for sand


Drum sieve screen for sand

The Trommel screens provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.



Our Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.



This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc.



Features



1. Configured for economical & efficient classification, Screening and grading

2. Heavy duty trommel drum with lifters at the front to facilitate material break up

3. Screen replaceable for different mesh sizes

4. Multiple screen size

5. Easily changed screen plates

6. Largest processing capacity in the industry

7. Unique screen design, result in higher capacities, longer screen life and no material clogging

8. Heavy duty feed hopper and extension

9. Discharge chute

10. Gear drive mechanism

11. Variable speed drive mechanism

UBO is specialized in producing and distributing filter, filter element,polymeric filter,filter strainer,wedge wire screen etc. Welcome to contact us for more information and cooperation.0086-0311-83289301

Specification of the Drum sieve screen for sand


Drum sieve screen for sand

Model
 Capacity (t/h)
 Power (kw)
 Drum diameter (mm)
 Drum length (mm)
 Screen size (mm)
 Dimension (mm)
 Weight (kg)

GT1015
 50
 4.0
 1000
 1500
 <3~10
 3000*1400*2145
 2200

GT1020
 100
 5.5
 1000
 2000
 3460*1400*2145
 2800

GT1225
 160
 7.5
 1200
 2500
 4146*1600*2680
 4200

GT1530
 250
 11
 1500
 3000
 4460*1900*2820
 5100

GT1545
 350
 15
 1500
 4500
 5960*1900*3080
 6000

GT1848
 450
 22
 1800
 4800
 6500*2300*4000
 7500

GT2055
 600
 30
 2000
 5500
 7500*2500*4000
 8600

Production And Sales of Drum sieve screen for sand


Drum sieve screen for sand

Packaging Detail:Standard container,in bulk with seaworthy packaging or as the clients' requestDelivery Detail:15-30 days, or depending on the order
