| Category: | Water Strainer & Nozzle |
| Material: | stainless steel 304 / 316 / 316L |
| Properties: | wedge wire screen |
| Application: | as the fitting using in the water-treating equipment |

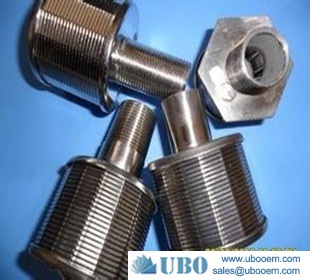

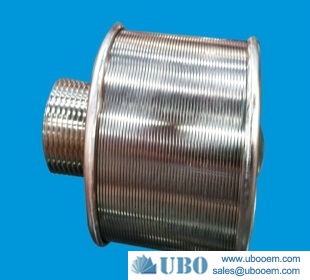

The diving helmet for water treatment. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.
The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, Decoration and other industries.
Great mechanical strength
Highly resistant to abrasivity and vibration.
It can hold more pressure and temperature compared to the perforated sheet screen.
Longer screen life.
Larger useful area than that of the standard perforated sheet screen.
The wedge wire screen can be used in any of INOXPA filters.
The wedge wire screen is assembled to the filter body by clamp, this allows an easy and quick disassembling for cleaning.
It is possible to clean the wedge wire screen with a reversed flow (back flushing).
| 1.FACTORY MAINLY MATERIAL | |||||||||
| stainless steel 304 / 316 / 316L | |||||||||
| 2.PROFILE WIRE (MM) | |||||||||
| width | 1.5 | 1.5 | 2.3 | 2.3 | 1.8 | 3 | 3.7 | 3.3 | |
| height | 2.2 | 2.5 | 2.7 | 3.6 | 4.3 | 4.7 | 5.6 | 5.3 | |
| factory mainly size:1.5*2; 2*3 | |||||||||
| producing as per customer's requirements | |||||||||
| 3.SUPPORT ROD (MM) | |||||||||
| width | 2.3 | 2.3 | 3 | 3.7 | 3.3 | ||||
| height | 2.7 | 3.6 | 4.7 | 5.6 | 6.3 | ||||
| factory mainly size: 2*3; 3*5; 4*6 | |||||||||
| producing as per customer's requirements | |||||||||
| support rod quantity as per customer's requirements | |||||||||
| 4.SLOT GAUGE :Minimum : 0.02mm | |||||||||
| 5.OUTSIDE DIAMETER ; Minimum:30mm | |||||||||
| 6.LENGTH OF WEDGE WIRE SCREEN | |||||||||
| producing as per customer's requirements | |||||||||
