Wedge Wire Screen Drum Cylinders

Product Code: 3824
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,etc industrial filtration

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of Wedge Wire Screen Drum Cylinders


YUBO offers a wide array of drum screens for water treatment.

Drum Screens are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded, with an unique welding process. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. Wedge Wire Screen offers great strength, precision, long service life and a wide range.

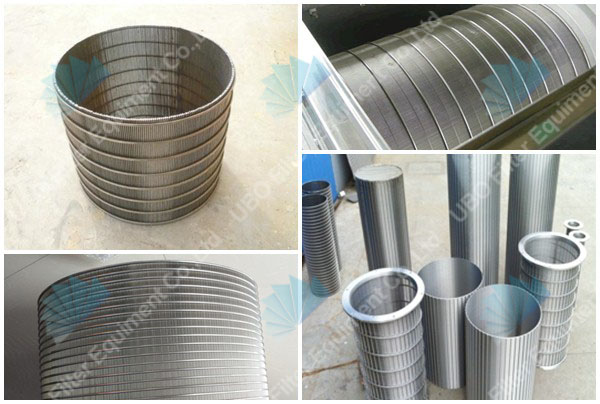

Drum Screens

Applications of Drum Screens

Wedge wire Drum cylinder products are used for solid / liquid and solid / gas separation, sizing, dewatering and media retention in Oil & Gas wells, Water Wells, monitoring & soil sanitation, the (petro) chemical industry, food and process industry and architecture.

Advantages of Drum Screens

1. Many wing pieces, no winding, highly efficient rotary drum type rotor.
2. Pulp consistency can reach 2.5~4%, reduce water consumption and fiber loss of production process.
3. Heavy impurity discharge tube, ensure the security of the sieve drum operation.
4. Advanced structure, strong and durable, easy dismounting, low energy consumption, less wastage fiber.
5. Equipped with automatic oiling and mechanical seal water monitoring device, high degree of automation.
6. Compact structure, small power, high output.
7. 1 year warranty and best after-sale service



YUbo also manufactures a continuous flow microfilter drum screen. This microfilter drum screen incorporates a mesh material for sludge thickening, solids and liquids separation, dewatering and fiber recovery.

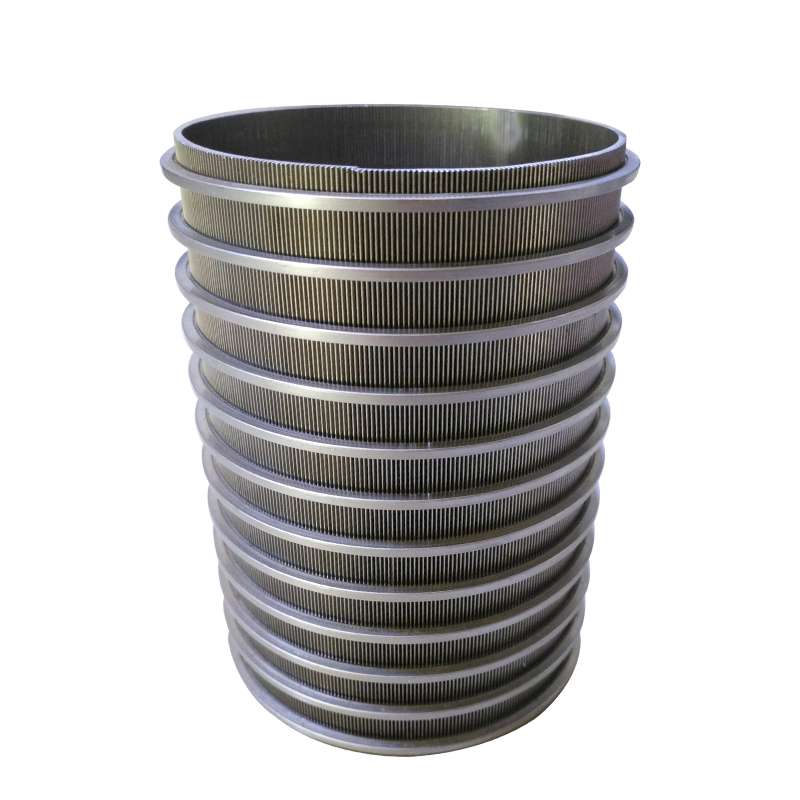

Drum Screens


Specification of the Wedge Wire Screen Drum Cylinders


Drum Screens

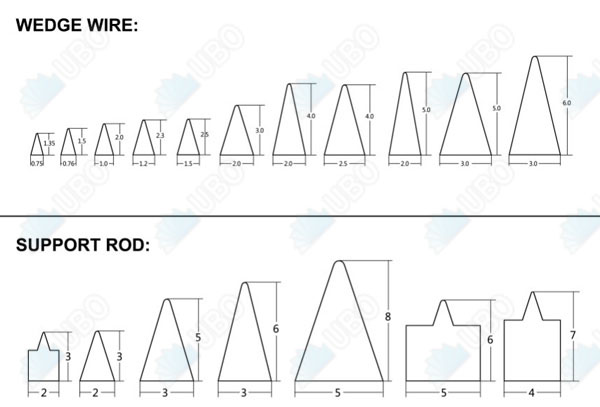

Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded coupling

Production And Sales of Wedge Wire Screen Drum Cylinders

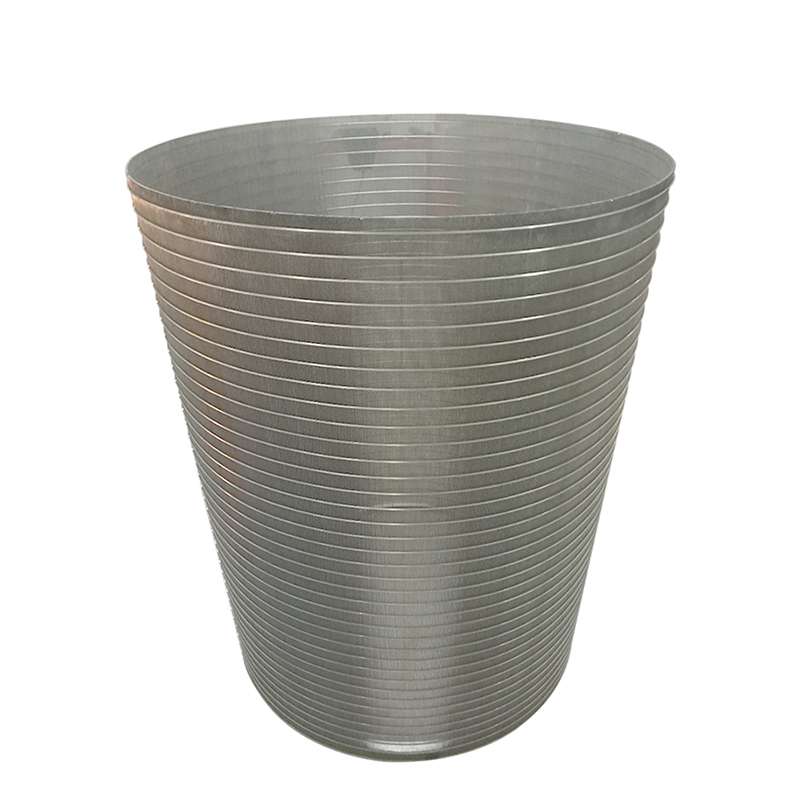

Drum Screens
