Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Product Code: 3563
Category:Sieve Bend Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment ,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire wedge v wire sieve bend curved screen plate for food processing


Wedge Wire wedge v wire sieve bend curved screen plate also known as side hill screens, parabolic screens, run down screens, gravity screens and DSM screens, can be custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup, surface water intakes, corn wet milling, coal preparation, and gold recovery.

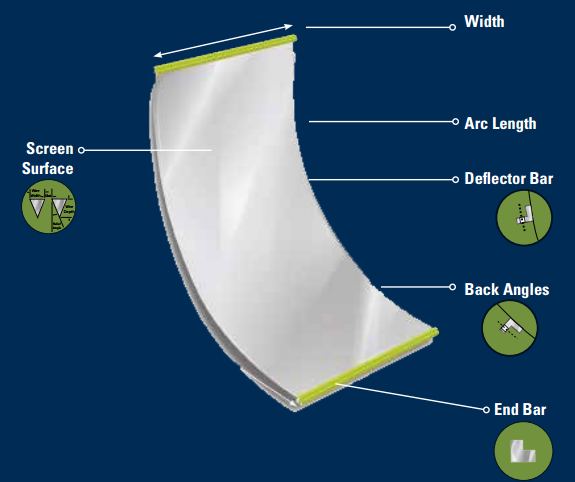

Wedge Wire wedge v wire sieve bend curved screen plate of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat wedge screen due to forces exerted as material flows against the curved surface.


Applications of Wedge Wire wedge v wire sieve bend screen plate for food processing


Wedge wire dsm screens in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.


Features of Wedge Wire wedge v wire sieve bend screen plate for food processing


-- Reduced equipment and installation costs

-- Low mantenance costs(No moving parts)

-- Better flow rate and finer fiber removal

-- Little space needed

-- Wide range of applications

-- Longer liftetime

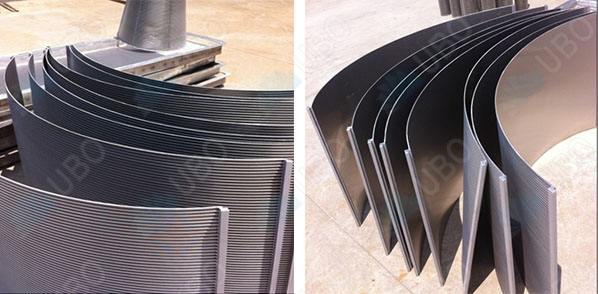

Wedge Wire wedge v wire sieve bend curved screen plate for food processing

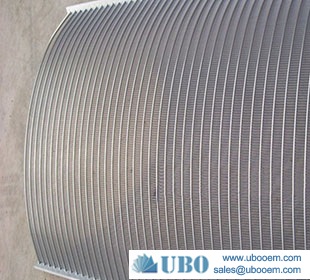

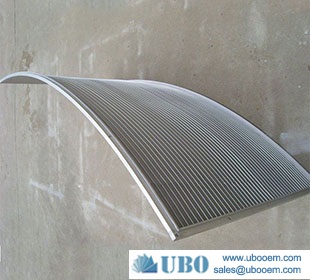

Wedge Wire wedge v wire sieve bend curved screen plate for food processing

Specification of the Wedge Wire wedge v wire sieve bend curved screen plate for food processing



Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: Other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Width from 25mm to 1200mm.
Radian 120º
End connection Plain beveled ends, flanged or threaded couplings

Production And Sales of Wedge Wire wedge v wire sieve bend curved screen plate for food processing


Package: in wood case

Delivery: 10-20 days
