Stainless steel304L screen cylinders for municipal water

Product Code: 2746
Category:Wedge Wire Screen Cylinders
Material:Stainless steel304L
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Stainless steel304L screen cylinders for municipal water


UBO's Stainless steel304L screen cylinders for municipal water consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications

Different styles and specification could be customized as per customer's requirement

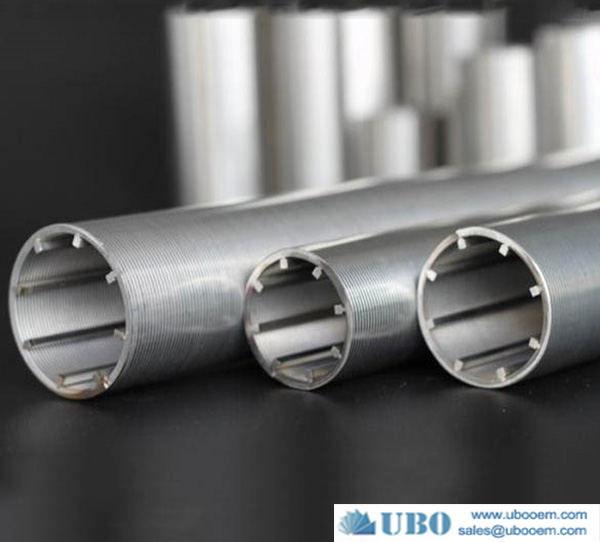

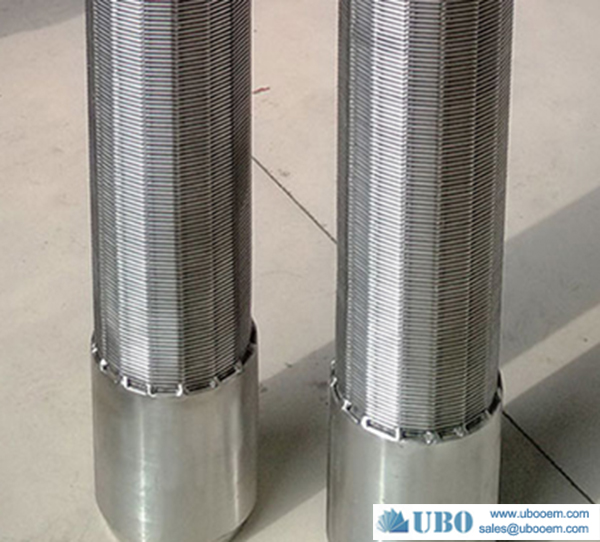

Stainless steel304L screen cylinders for municipal water

Characteristics of stainless steel304L screen cylinders for municipal water

1) The sand filter tubes have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.
2) Even filter pores, high permeability and anti-blocking.
3) Large filtering area, small flow resistance and high oil extraction rate
4) Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.
5) Multiple structure was welded together with stable filtering pore which made the strong non-deformability.

Application of stainless steel304L screen cylinders for municipal water

The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, Wedge Wire Screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. Wedge Wire Screen can be used in many kinds of medium filtering.

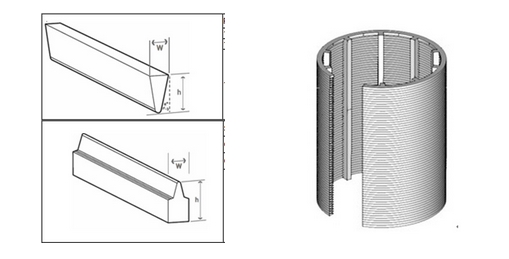

Specification of the Stainless steel304L screen cylinders for municipal water


Stainless steel304L screen cylinders for municipal water

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Stainless steel304L screen cylinders for municipal water



Stainless steel304L screen cylinders for municipal water
