Profile Wire Slotted Tubes

Product Code: 2467
Category:Wedge Wire Screen Cylinders
Material:perforated plate;stainless steel 304、316L 316Ti
Properties:wedge wire screen
Application:petroleum industry,chemical industry,water,deep well pump,plastics,food,architacture...

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Profile Wire Slotted Tubes


Profile wire slot tubes are manufactured directly on a machine. They have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one. Slot tubes can be provided with the necessary end pieces for attachments and/or reinforcements.

Standard constructions of slot tubes (special constructions are possible on request)
The designation of a slot tube describes its construction as follows:
surface wire / support wire x number of support wires.
Example: 12S/Q25 x 8.
This means that the profile wire is 12S. The support wire is Q25 and there are 8 support wires, equally spaced over 360°.
Slot tubes with dimensions and/or tolerances other than those described below, are available on request.

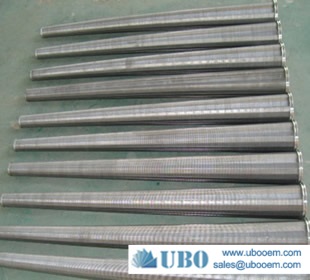

Profile Wire Slotted Tubes

Application of Profile Wire Slotted Tubes

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

Advantages of Profile Wire Slotted Tubes

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.•A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Profile Wire Slotted Tubes

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the Profile Wire Slotted Tubes


Profile Wire Slotted Tubes



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Profile Wire Slotted Tubes


Profile Wire Slotted Tubes
