Profile Wire Slotted Tubes

Product Code: 2239
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen cylinders
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Profile Wire Slotted Tubes

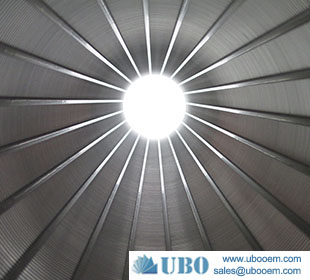

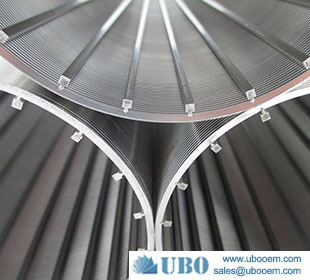

    Slot tubes are welded structures with the support profiles being rods in the axial direction of the tube and surface profiles spirally wound around the support profiles.
     Slot Tubes are manufactured directly on a machine. They have the unique advantage of very accurate, narrow slot openings and perfect roundness all in one. Slot tubes can be provided with the necessary end pieces for attachments and/or reinforcements.

Wedge Wire Bar Rotary Drum Screen

Application for Profile Wire Slotted Tubes:

Rotary Drum Screens are used to mechanically separate liquids from solid particles. Gap Technology offer a wide range of Rotary Drum screens and Rotary Wedge Wire Screens / Trommel Screens for industrial waste water screening applications to our large and varied customer base throughout the United Kingdom and across Europe.

Features for Profile Wire Slotted Tubes:

The wedge wire bar rotary drum screen provide more sufficient opening than the perforated metal baskets. It is stronger and can bear heavy loading pressure than the woven mesh filter baskets. The wedge wire basket can work with both benefits of the perforated and woven mesh filter elements and avoid the shortcomings. It is stronger, has more aperture and pressure differential levels can be achieved by variety of the slotting. Also it is economic.

Profile Wire Slotted Tubes

Specification of the Profile Wire Slotted Tubes


Surface Profiles Support Profiles Min. diam. mm Min. slot width mm
10S Q25 21 0.10
11S Q20 or Q25 23 0.030
12S 22S 30 0.050
12S Q25 23 0.030
12S Q35 30 0.050
18S 22S or Q35 30 0.050
18S Q25 25 0.030
18S D45 300 0.20
18S 10x3 300 0.20
22S 22S or Q35 45 0.10
22S D45 or 10x3 or 25x3 300 0.20
28S Q35 215 0.20
28S D45 or 10x3 or 25x3 300 0.20
34S Q35 300 0.20
34S D45 300 0.20
34S 10x3 or 25x3 300 0.20
42S Q35 or D45 300 0.20
42S 10x3 or 25x3 300 0.20



Diameters

Outside diameter in mm Number of support profiles
30 8
45 10
57 12
70 18
85 18
97 20
110 24
137 30
164 36
215 48
268 48
305 40
380 48
460 60
510 64
625 80
914 180



Standard tolerances (tighter tolerances are possible on request through the use of special techniques).

Slot Size: ± 0.030 mm
(max. ± 0.030)
± 0.1 mm
(max. ± 0.2)
for O.D. ≤ 300 mm

for O.D. > 300 mm
Diameter ± 0.3 mm
± 0.5 mm
± 2.5 mm
Ø < 164 mm
164 < Ø < 300 mm
Ø > 300 mm
Length ± 2 mm
± 4 mm
Ø ≤ 300 mm
Ø > 300 mm
