Wedge Wire slotted wedge wire screen resin trap

Product Code: 3611
Category:Resin Traps
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire slotted wedge wire screen resin trap


Wedge Wire slotted wedge wire screen resin traps are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.
The slotted screen resin trap is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire). The wedge wire resin trap have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screen have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

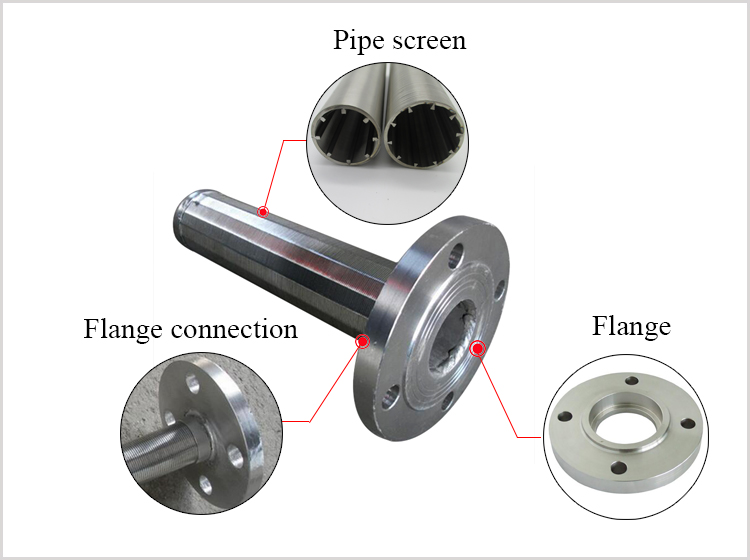

Wedge Wire slotted <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> resin trap

Application of Wedge Wire slotted wedge wire screen resin trap

They are widely used for water, oil and gas wells in the world. As China chief manufacturer and exporter, we export good quality water well screen to many countries. Main products cover bridge slot screen, wire wrapped well screen, stainless steel Wedge Wire Screen, water well screen, wedge wire screen, sieve bend screen, Wedge Wire tube and sand control screen. In addition, we also offer perforated pipes and base pipes for well screen and Wedge Wire Screen.

Advantages of Wedge Wire slotted wedge wire screen resin trap

The Wedge Wire Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure.

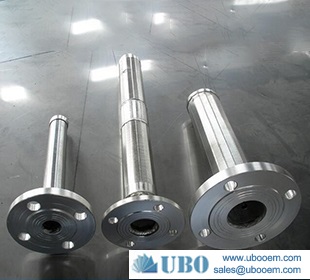

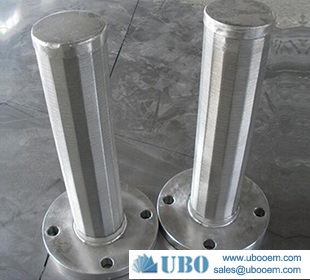

Wedge Wire slotted <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> resin trap

Specification of the Wedge Wire slotted wedge wire screen resin trap




wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters

Diameter

  from 25mm to 1200mm.

Production And Sales of Wedge Wire slotted wedge wire screen resin trap

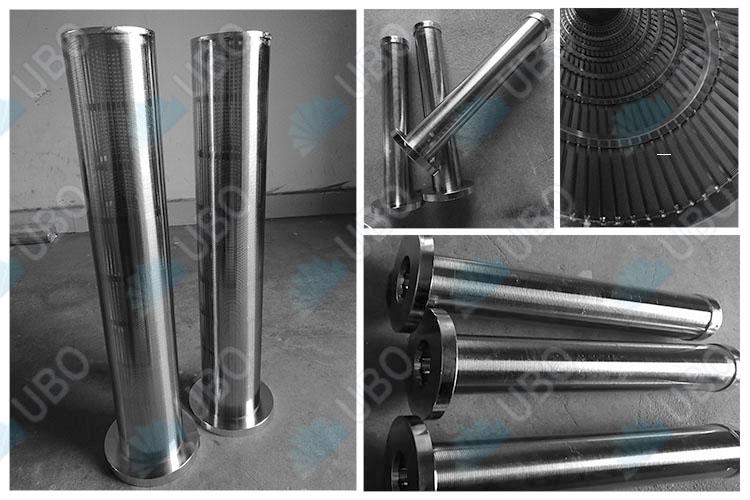

Wedge Wire slotted <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> resin trap
