slotted screen cylinder

Product Code: 1850
Category:Wedge Wire Screen Cylinders
Material:Stainless Steel
Properties:Wedge Wire Screen
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of slotted screen cylinder


slotted screen cylinder are very effective in wells of this type since they can be manufactured with very small slot size and yet still maintain the necessary open area to minimize friction head loss. Most continuous wire wrap screen is manufactured from stainless steel rather than carbon steel in order to avoid problems which often leads to accelerated corrosion.

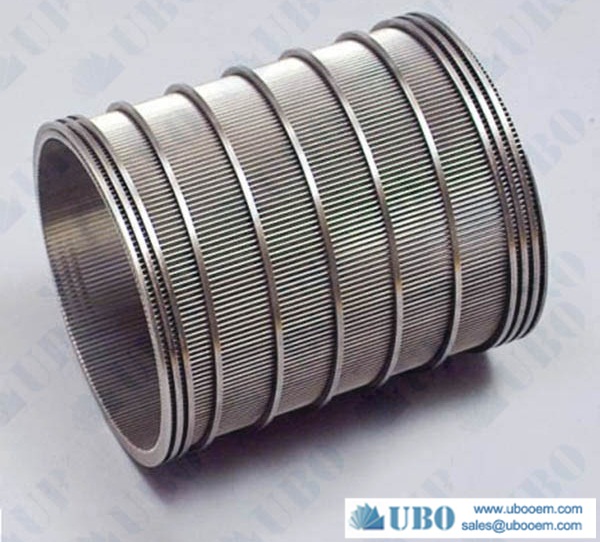

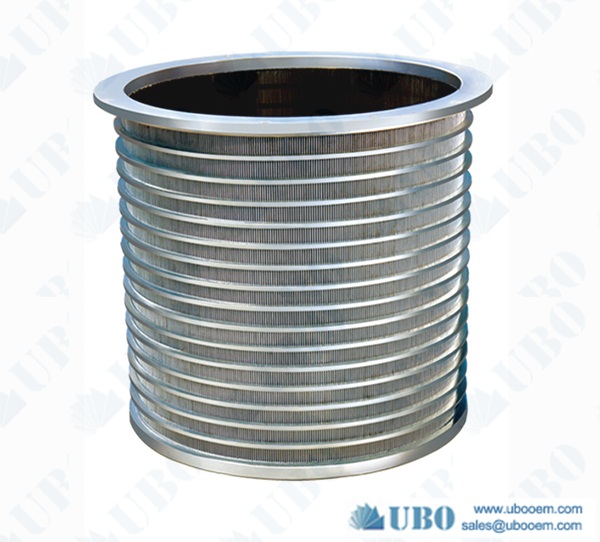

slotted screen cylinder

Application for slotted screen cylinder:

Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.
Used for fiber removal in Starch industry.

Advantages for slotted screen cylinder:

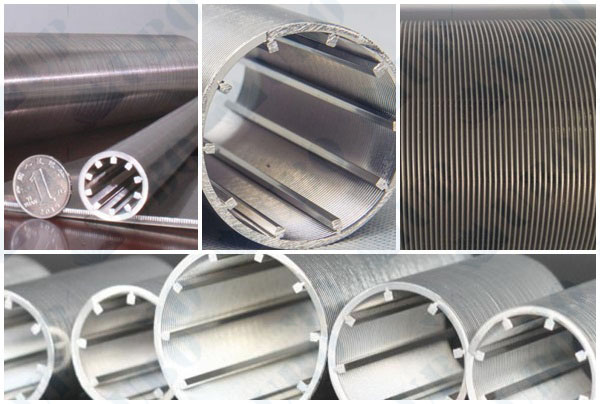

The Wedge Wire Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine. The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure

Product Characteristics for slotted screen cylinder:

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Customized design for slotted screen cylinder:

The design is customized to your demands;
Slot opening from 50 micron up to 2000 micron
All API and ANSI pipe sizes are available
Customized construction:
Lower V-wires for reduced OD
Higher support rods for more standoff
Customized end-fittings and threaded connections
Fixation of screen by welding or shrink fitting of end-rings to the base-pipe

Specification of the slotted screen cylinder


Outside Diameter
Profile wire
Rod wire
Rod quantity
Slot size
Length
DN
Inch
mm
mm
mm

mm
mm
20
3/4
26.9
1.5*2
2*3
12
0.1~0.25

45~3000

25
1
33.7
1.5*2
2*3
14
0.1~0.25

45~3000

32
1-1/4
42.4
1.5*2
2*3
16
0.1~0.25

45~3000

40
1-1/2
48.3
1.5*2
2*3
16
0.1~0.25

45~3000

50
2
60.3
1.5*2
2*3
18
0.1~0.5

45~3000

65
2-1/23
76.1
1.5*2
2*3
20
0.1~0.5

45~3000

80
3
88.9
1.8*2.5
2*3
24
0.1~0.5

1000~6000

100
4
114.3
1.8*2.5
2*3
30
0.5~2

1000~6000

125
5
139.7
2.3*2.7
2*3
36
0.5~2

1000~6000

150
6
168.3
2.3*2.7
3*5
44
0.5~2

1000~6000

200
8
219.1
3.3*3.5
3*4.7
56
0.5~2

1000~6000

250
10
273
3.3*3.5
4*6
66
0.5~2

1000~6000

300
12
323.9
3.3*4.7
4*6
72
0.5~2

1000~6000

350
14
355.6
3.7*5
4*6
80
0.5~2

1000~6000

400
16
406.4
1.5*2
2*3
94
0.1*2

1000~6000

450
18
457
2*3
4*5
112
0.1*2

500~400

500
20
508
2*3
4*5
124
0.1*2

500~400

550
22
559
2*3
4*5
140
0.1*2

500~400

600
24
610
2*3
4*5
156
0.1*2

500~400

Siot:0.1mm~2mm    Tolerance:0.05
