Profile Bar Screens

Product Code: 1854
Category:Sieve Plate Screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:Petrochemical, Fish Diversion, Pulp & Paper, Waste Water, Food, and Architectural industries,sugar juice filtration, waste water treatment, crude oil

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Profile Bar Screens


Water well stainless steel sand free screen is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.


Our high quality custom built flat panel screens, manufactured either framed or unframed with a variety of support rods, offers a high strength, long lasting, economical solution to the market. They come in commonly shaped wedge wire profiles and offer good screening efficiency across a wide range of applications. Flat wedge wire screens are excellent for use to de-water, de-slim, drain and rinse, wet classify, dry classify, filter, dry and cool. They are recommended for use in any application that requires efficient liquid-solid separation.

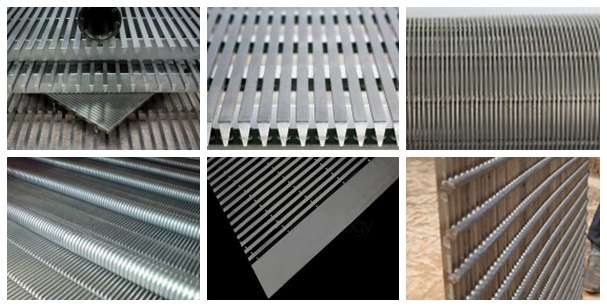

Profile Bar Screens



Applications for Profile Bar Screens:



Petrochemical, Fish Diversion, Pulp & Paper, Waste Water, Food, and Architectural industries,sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.



About Profile Bar Screens:



Water well stainless steel sand free screen consist of V-shape profile wire and the longitudinal support rods, each intersecting point of wires of Johnson Well Screens is fusion welded, so it has sturdy construction and good mechanical property. The V-shape section plane of Johnson Well Screens can avoid blockage, and make sure of the unimpeded water.

Profile Bar Screens


Features for Profile Bar Screens:


1) Wedge wire screen style isn't easy to be locked

2) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.

3) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability

4) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

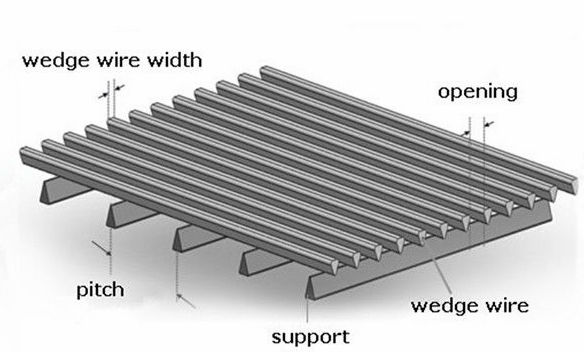

Specification of the Profile Bar Screens


Profile Bar Screens


Surface Profile W H Material


10S 0.75 1.425 S304,S316L,Hastelloy,Monel alloy of nickel
and titanium, and other stainless steel
11SL 10.75 1.8
22S 1.8 3.7
4S 0.45 1.2
50SL 3.4 7.5


Surface Profile W H Material
Q22 2 2.28 S304,S316L Hastelloy, Monel alloy of nickel
and titanium, and other stainless steel
Q35 3 5
Q53 4 3
D56 4 5.6
D45 3.8 6.0

Production And Sales of Profile Bar Screens
