Paper Mill Pressure Screens

Product Code: 2602
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Paper Mill Pressure Screens


Paper Mill Pressure Screens are welded by profile V-wire and support wires,it is also called Johnson screen. It has large filter area because of big opening,vee wire structure are easy for automatic back washing and avoid pipe blocking.The pressure will be reduced when water flows in for greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so extend the pipe's life . Between the same length,diameter and slot size,wedge wire pipe is thrice than bridge filter pipes. Moreover, we have inside perforated metal and wedge wire tube outside filter.



Features of Paper Mill Pressure Screens



-- Excellent roundness

-- Very good slot width precision

-- High mechanical load capacity

-- No form closure connection that would allow vibration of the profiled bars

-- Automated welding process for high-precision manufacturing

-- Perfectly adjusted screen basket profiles

-- Available for all screens

-- Surface finishing as required



Application of Paper Mill Pressure Screens



widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

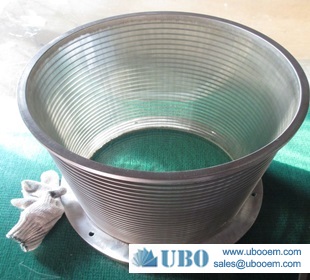

Paper Mill Pressure Screens


Specification of the Paper Mill Pressure Screens

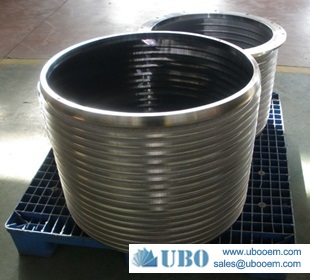

Paper Mill Pressure Screens

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Paper Mill Pressure Screens


Package: in wood case

Delivery Time: 5-25 days
