| Category: | Sieve Bend Screen |
| Material: | stainless steel 302,304,304L,316,316L |
| Properties: | wedge wire screen |
| Application: | mining, coal separation, drilling, fertilizer, food, environmental protection, metallurgy, medicine and other industries. |

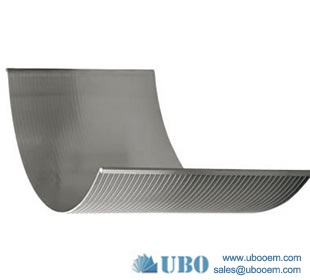

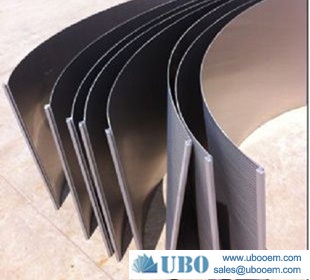

Sieve bend screen for wastewater treatment, typically made from perforated plate with hole diameters of less than 0.008 in. / 0.20 mm, can be used to recover fibers in water streams, to remove fibers in water used on the paper machine or in dilution water for the headbox. Using a sieve bend screen eliminates the risk of stringing and of plugging the water nozzles.
• More open area
• Precise openings
• Maximum design flexibility
• Stronger and more durable, economical
• Easier installation and long-term operating etc
Energy efficient--operate with no moving parts and with no energy input
Space effficient-- treats up to 122 liters per second per square meter of floor space
Quite operation--no moving parts mean no mechanical or electrial vibrations
Accurate size-- can be used for sizing solid particles down to 0.2mm
mining, coal separation, drilling, fertilizer, food, environmental protection, metallurgy, medicine and other industries.
|
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm |
|
Note: other specifications available as per request |
|
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
|
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
|
Length |
up to 6 meters. |
|
Width |
from 25mm to 1200mm. |
|
Radian |
|
|
End connection |
Plain beveled ends, flanged or threaded couplings |
