Wedge Wire Screen Cylinder Filter

Product Code: 1611
Category:Cylinder Filter
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Stainless Steel Filter
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Wedge Wire Screen Cylinder Filter


wedge wire screen cylinder Filters are made of stainless steel wedge wire screen. Filter rating is from 30 to 80 microns. wedge wire screen cylinder Filters is welded onto rods with stainless steel wedge wire at every contact point. They are classified into filter sheet, filter basket and filter elements. They have such characteristics as good strength, high ridity, resistance to abrasion and corrosion, even gap, good in filtration and fluidity, easy to clean and back wash.



Application for Wedge Wire Screen Cylinder Filter:



Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.

Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.

Used for fiber removal in Starch industry.



Characteristics for Wedge Wire Screen Cylinder Filter:



1) It has high mechanical strength, can bear large pressure drop.

2) It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.

3) The wedge type slot can improve backflushing and regeneration performance.

4) It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

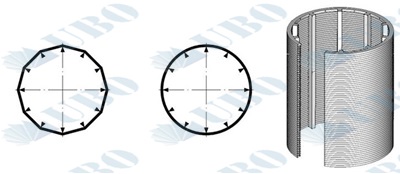

wedge wire screen cylinder filter



wedge wire screen cylinder filter

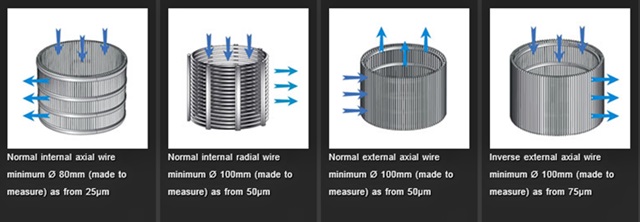

Specification of the Wedge Wire Screen Cylinder Filter


wedge wire screen cylinder filter


size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Production And Sales of Wedge Wire Screen Cylinder Filter


wedge wire screen cylinder filter
