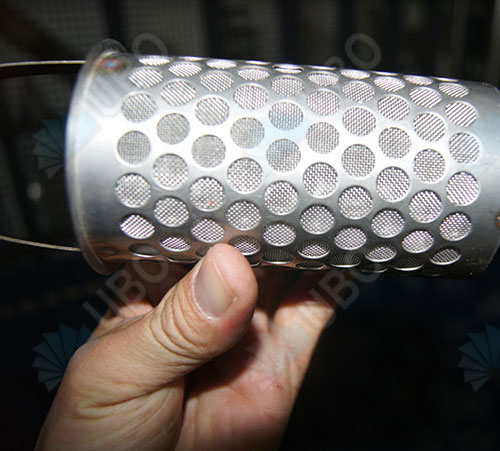

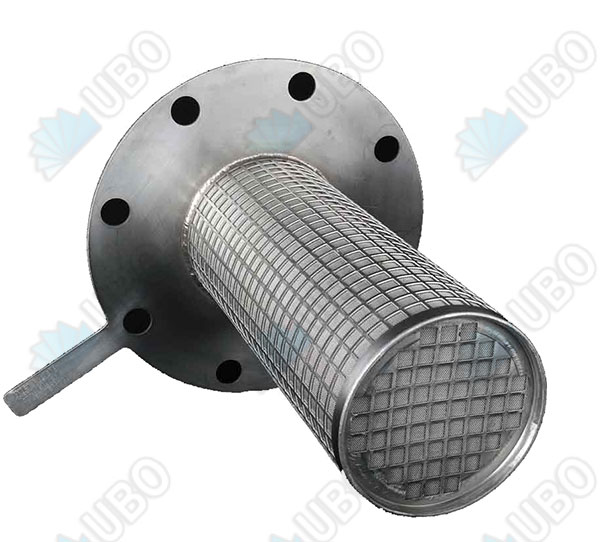

cylinder strainer

Product Code: 1616
Category:Cylinder Filter
Material:Stainless Steel wire mesh
Properties:Stainless Steel Filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of cylinder strainer


cylinder strainer is Made of  wire mesh laminates, this kind of filter element is comparatively simple in processing compared with pleated filter elements. Normally comes in the form of pipes or cylinder filter. Processes involved include shearing of filter media, welding to form a cylinder, machining of the caps and other parts, soldering of the parts to the cylinder, washing, testing, etc.

cylinder strainer  Application: For air filter, hydraulic filter and oil filter.



Features of Cylinder Strainer



Sintered wire cloth is made by vacuum sintering, offers high strength without any support layer;

No possibility of media migration occurring in using;

A wide operating temperature range;

Strongly corrosion resistant;

Easy to clean and offer long service life.

cylinder strainer Available filtration rating (μm): 2, 5, 10, 20, 40, 75, 100, 150, 200

Sizes: Any outline size is available at customer's requirement.

Specification of the cylinder strainer


Major Technical Index of Sintered Metal Wire Cloth

Nominal Rating
(μ)

Protective layer

Control layer

Dispersion layer

Reinforcing layer

Reinforcing layer

Thickness
(mm)

Average Air Permeability
(L/min/cm2)

Bubble Point Pressure
(mmH2O)

Weight
(kg/m2)

Porosity

1

200

400x3000

200

12x64

64x12

1.7

1.81

360600

5-LAYERS
8.4

6-LAYERS
14.4

About 40%

2

100

325x2300

100

12x64

64x12

1.7

2.35

300590

5

100

200x1400

100

12x64

64x12

1.7

2.42

260550

10

100

165x1400

100

12x64

64x12

1.7

3.00

220500

15

100

165x1200

100

12x64

64x12

1.7

3.41

200480

20

100

165x800

100

12x64

64x12

1.7

4.50

170450

25

100

165x600

100

12x64

64x12

1.7

6.12

150410

30

100

400

100

12x64

64x12

1.7

6.86

120390

40

100

325

100

12x64

64x12

1.7

7.10

100350

50

100

250

100

12x64

64x12

1.7

8.41

90300

75

100

200

100

12x64

64x12

1.7

8.70

80250

100

100

150

100

12x64

64x12

1.7

9.10

70190

150

50+100+50+30+30+100+50

2.0

25.00

50150

200

40+80+40+20+40+80+40

2.0

26.00
