Mechanical bar screen

Product Code: 2429
Category:Sieve Bend Screen
Material:Raw material: Low carton, low carton galvanized steel (LCG), stainless steel
Properties:sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order

Description of Mechanical bar screen

Mechanical bar screen consists of a concave curved profile wire screen (also known as wedge wire / v / vee / wire screen) mounted in a frame with the screen openings perpendicular to the flow. Mechanical bar screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.
Mechanical bar screens are also known as DSM screens, after Dutch State Mines, who introduced the sieve bend as a static sizing screen having ten times greater capacity than conventional vibrating screens.

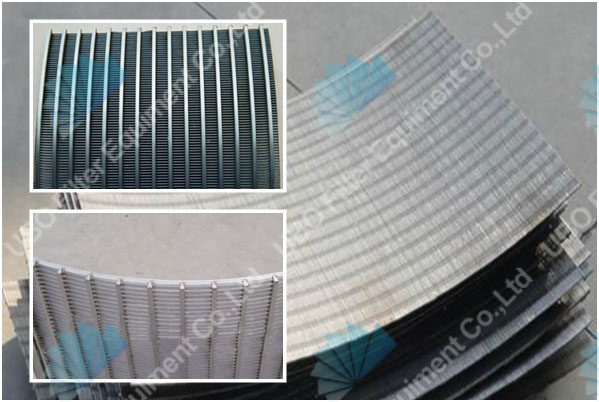

Mechanical bar screen

Application of Mechanical bar screen

it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filter.

Features of Mechanical bar screen

Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.

Energy Efficient - operates with no moving parts and with no energy input.

Space Efficient - treats up to 122 litres per second per square metre of floor space.

Quiet Operation - no moving parts means no mechanical or electrical vibrations.

Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").

Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.

Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Mechanical bar screen

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.

Specification of the Mechanical bar screen

Material: Raw material: Low carton, low carton galvanized steel (LCG), stainless steel (302,304,304L,304HC,316,316Letc.)

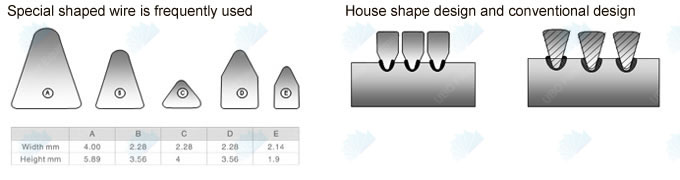

Wedge wire:  2x3mm, 3x5mm

Length: 0.5, 0.8 ,1.2 ,1.5meters.

Radian: 120º

Slot size:  0.02mm ,0.05mm, 0.1mm, 0.35mm 0.5mm ,0.8mm, 1mm ,2mmalso achieved upon request.

Mechanical bar screen

Production And Sales of Mechanical bar screen
