316Ti sieve bend screen

Product Code: 2231
Category:Sieve Bend Screen
Material:Stainless steel 316
Properties:sieve bend screen
Application:ore choosing,petroleum,chemical,water,plastics,food

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of 316Ti sieve bend screen


316Ti sieve bend screen have another name as DSM sreens because the Dutch State adapts sieve bend in mine development first. Sieve bends are manufactured to suit a wide range of industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

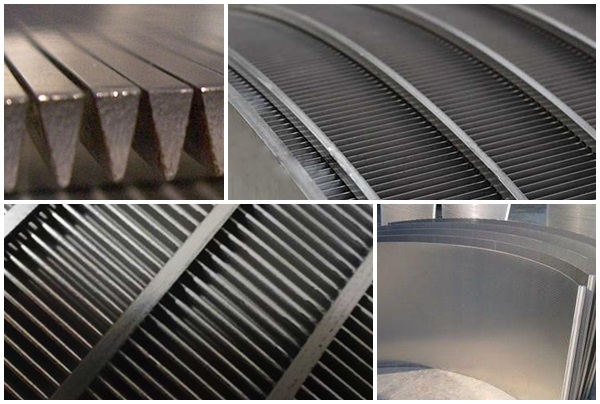

A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.

As slurry flows down the screen each wedgewire's sharp leading edge slices away a thin layer of water and small-particle solids. Larger particles continue down the screen surface, with much of the liquid removed. Separation size is considerably smaller than screen openings, usually about one half the opening size.

Features of 316Ti sieve bend screen

Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
Flexible Design - we can supply units with any features you may require.

316Ti sieve bend screen

Ubo Filter Co.,Ltd is specialized in producing and distributing Mine  sieving mesh,Water well screen,Well screen,Oil well screen,Wedge wire screen,Slot tube,V shaped wire  welded screens,Spiral screen tube,Wire-wrap screen pipe,Mine screen mesh,Screen cylinders,Vibrating sieve  screen plate.
 Welcome to contact us for more information and cooperation.0086-0311-83289301

Specification of the 316Ti sieve bend screen


Material:stainless steel

Type:sieve bend screen

Slot:0.2-50mm

Radian:as your request

wedge wire cross flow sieve bend screen custom products

Surface Profile
W
H
Material
10S
0.75
1.425
S304,S316L Hastelloy, Monel alloy of nickel
 and titanium, and other stainless steel
11SL
10.75
1.8
22S
1.8
3.7
4S
0.45
1.2
50SL
3.4
7.5
