Rotating Sieve Screens

Product Code: 1881
Category:Wedge Wire Screen Cylinders
Material:stainless steel
Properties:wedge wire screen
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Rotating Sieve Screens


Rotating Sieve Screens is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.

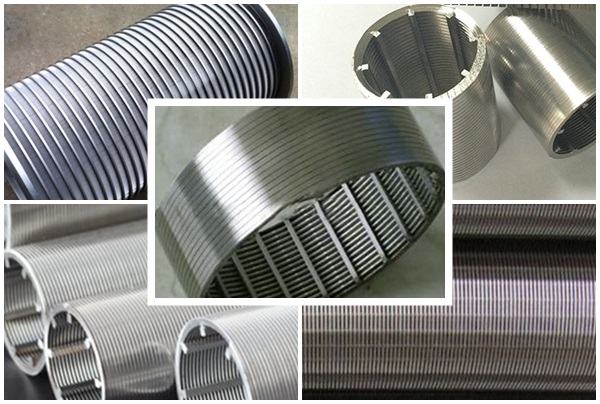

Rotating Sieve Screens

Application for Rotating Sieve Screens:

widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

Features for Rotating Sieve Screens:

1.Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Advantages for Rotating Sieve Screens:

1.Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2.Low cost operation.
3.Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction

Construction for Rotating Sieve Screens:

1.We use wedge-shaped profile wire in order to make the slot v-shaped. It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.
3.After work for a period of time, the filter can be back flush.It can use for many times.

Specification of the Rotating Sieve Screens


size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Production And Sales of Rotating Sieve Screens

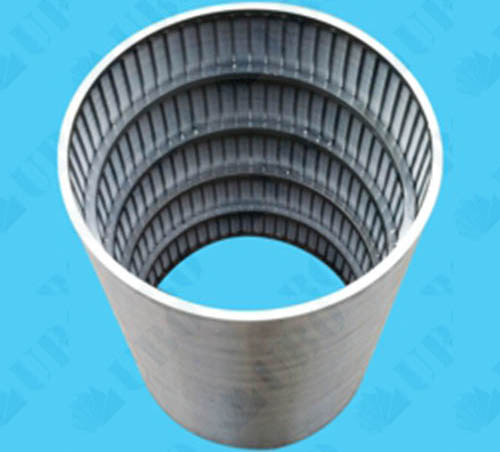

Rotating Sieve ScreensRotating Sieve Screens
