Wedge wire Rotary sieve screen rotating sieve screens

Product Code: 3334
Category:Wedge Wire Screen Cylinders
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:food processing, waste water filtration, mineral processing

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge wire Rotary sieve screen rotating sieve screens


The slurry is pumped into the rotary sieve, and the liquid and smaller solids pass through the slots in the screen. Larger solids travel down the length of the screen to the discharge end.

Rotary Sieves can be manufactured in either 304 or 316 stainless steel, and come in any size diameter and length. The screens inside the rotary sieve are especially designed to fit the specifications of each rotary sieve and are available separately from the rotary sieve itself. They are ideal for replacing worn out screens in existing applications.

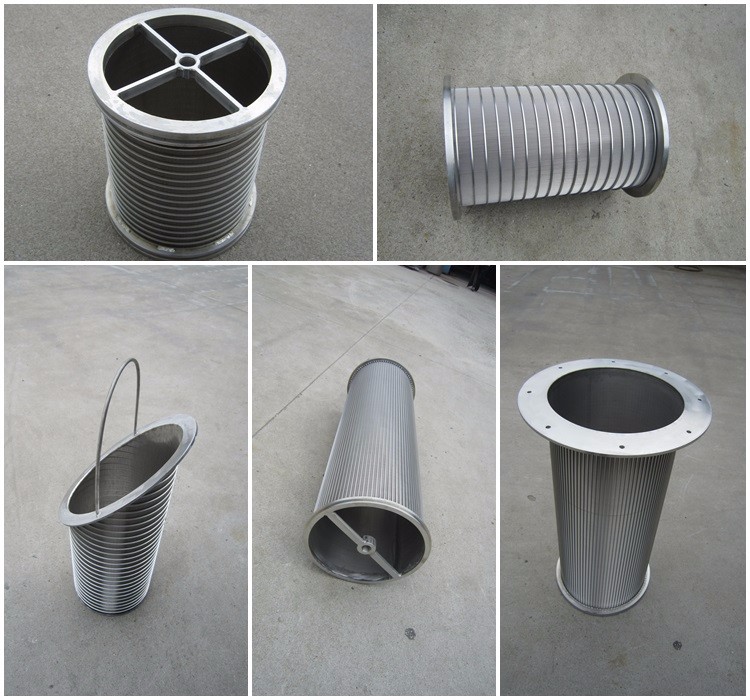

Wedge Wire Wedge Wire Rotary sieve screen rotating sieve screens

Wedge wire Rotary sieve screen rotating sieve screens

Steellong Wedge wire Rotary sieve screen rotating sieve screens can be manufactured in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder. These wedge wire cylinder screens can be manufactured for stationary/static processing or can be driven on trunions for a rotating effect on your materials.

Application of the Wedge wire Rotary sieve screen rotating sieve screens

Steellong Wedge Wire rotary sieve screen rotating sieve screens can be used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

Specification of the Wedge wire Rotary sieve screen rotating sieve screens


Wedge Wire Wedge Wire Rotary sieve screen rotating sieve screens

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Production And Sales of Wedge wire Rotary sieve screen rotating sieve screens


Wedge Wire Wedge Wire Rotary sieve screen rotating sieve screens
