Stainless Steel Sanitary Strainers

Product Code: 1660
Category:Cone Filter&Strainer
Material:Stainless Steel wire mesh
Properties:stainless steel filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Stainless Steel Sanitary Strainers

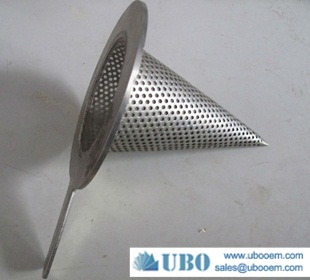

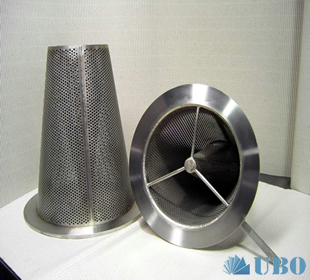

Main filter media of SANITARY STRAINERS is stainless steel weaving wire cloth and multiple layers sintered wire mesh. On the basis of features and advantage of disc filter, cone filter increases filter area and easily discharges the material. The size is available at the customers’ request.


---    SANITARY strainers is Designed to utilize standard piping - flanged, IPS line connections, acme threads or clamped connections.

---    Micron filter cloth provides SANITARY strainers retention down to one micron, nominal.

---    Duplex designs available.

---    SANITARY strainers withstand full line pressure.

---    Quick opening clamped cover for fast basket maintenance.

---    Available in Styles I, R, and S.


Features of Sanitary Stainers


SANITARY strainers  is Quick opening clamped cover

SANITARY strainers handle design ensures positive seating

Gasket to meet process conditions

Polished shell and spun, crevice-free, neckline offer contamination-free service

Clamped outlet assembly for thorough cleaning


Applications of Sanitary Stainers


1) Polyester filtration,

2) water treatment,

3) oil filtration,

4) pharmaceutical industry,

5) chemical industry,

6) chemical fiber industry

7) high temperature media filtration


Specification of the Stainless Steel Sanitary Strainers


---    SANITARY strainers Line sizes from 1" to 6".

---    SANITARY strainers Rated up to 250 psi at 300F

---    304 and 316 stainless steel, polished to 3A sanitary standards.

MODEL#

LINE SIZE

INCHES

BASKET AREA SQ. IN.

A

B

C

S10

1"

12"

4"

9 1/2"

18

S15

1 1/2"

12"

4"

9 1/2"

27

S20

2"

18"

4"

15"

65

S25

2 1/2"

18"

4"

15"

85

S30

3"

25"

6 1/2"

21 1/2"

136

S40

4"

30"

6 1/2"

26"

252

Production And Sales of Stainless Steel Sanitary Strainers


Packaging Details: Sanitary strainers are packed with cartons and outside with wooden pallets or wooden cases.
