| Category: | Basket Filters |
| Material: | Stainless steel 316 |
| Properties: | basket filter |
| Application: | water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment |
Sanitary Basket filter
1. accurate filtration rate
2. welded by imported machine
3. large flow capacity
4.long life

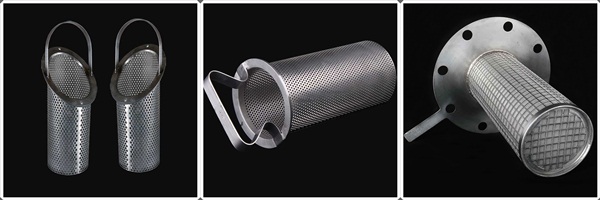

stainless steel wire basket
Feature
stable performance, reliable quality, attractive surface; Excellent resistance to acid, alkali, high temperature, wearing, and distortion; Resuing possible.
Heavy Machined Flange (with O-Ring) for seal between strainer basket and strainer housing.
14 ga. (0.078” thick) perforated sheet having ¼” dia. holes, 3/8” staggered centers, 40% Open Area is standard. The Perforated Strainer Basket can be supplied with any size hole and perforated pattern required.
Shown with Quick Release Han
| NOM. SIZE | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | |
| OD | 150 | 3 7/8 | 4 5/8 | 5 1/8 | 6 5/8 | 7 1/2 | 8 1/2 | 10 3/4 |
| 300 | 3 7/8 | 4 5/8 | 5 1/8 | 6 5/8 | 7 1/2 | 8 1/2 | 10 3/4 | |
| 600 | 4 1/8 | 4 7/8 | 5 5/8 | 6 7/8 | 9 1/4 | 10 1/4 | 12 3/8 | |
| ID | 1 3/4 | 2 1/4 | 2 3/4 | 3 1/2 | 4 5/8 | 5 1/2 | 7 1/8 | |
| H | 4 1/2 | 5 1/2 | 6 1/2 | 8 1/2 | 10 1/2 | 13 | 17 | |
| L | 3 1/2 | 4 | 4 1/2 | 6 | 7 1/2 | 9 | 12 | |
| NOSE | 1 | 1 | 1 | 2 | 2 | 2 | 2 | |
| NOM. SIZE | 10 | 12 | 14 | 16 | 18 | 20 | 24 | |
| OD | 150 | 13 1/8 | 15 7/8 | 17 1/2 | 20 | 21 3/8 | 23 5/8 | 28 |
| 300 | 13 1/8 | 15 7/8 | 17 1/2 | 20 | 21 3/8 | 23 5/8 | 25 | |
| 600 | 15 1/8 | 17 3/8 | 19 1/8 | 22 | 13 7/8 | 26 5/8 | 30 7/8 | |
| ID | 9 | 10 7/8 | 12 5/8 | 14 1/2 | 16 3/8 | 18 3/8 | 22 3/8 | |
| H | 21 | 25 | 26 | 29 1/2 | 33 | 37 | 44 | |
| L | 14 | 16 1/2 | 17 | 19 | 21 | 24 | 28 | |
| NOSE | 3 | 3 | 4 | 4 | 6 | 6 | 10 | |
