Perforated Strainer Basket

Product Code: 1664
Category:Cone Filter&Strainer
Material:Stainless Steel wire mesh,perforated sheet
Properties:stainless steel filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Perforated Strainer Basket


Perforated Strainer Basket is also called temporary conical strainer,belonging pipeline coarse filter series. It is used as pipeline strainers that are designed for new system start-up,removing any coars,debris such as rags, welding rods, pipe scale, rust etc which accidentally present within the system to ensure the equipment produce safely.

characteristics of Perforated Strainer Basket

(1).acid and alkali-resistance,high temperature resistance.
(2).wear resistance,strong stress resistance.
(3).low cost,easy to install,clean and maintain etc.

Applications of Perforated Strainer Basket

They are widely used in protective covers of mechanical equipment,in the disposing of ambient noises,in the range of petroleum and chemical industry, in the manufacturing of boats ,in the range of phamacy ,grain,feed ,mine,kitcken utensils and so on.

Perforated Strainer Basket with a fixed round rod handle

·         Heavy Machined Flange (with O-Ring) for seal between strainer basket and strainer housing.

·         14 ga. (0.078” thick) perforated sheet having ¼” dia. holes, 3/8” staggered centers, 40% Open Area is standard. Perforated Strainer Basket can be supplied with any size hole and perforated pattern required.

·         Handle is welded to the top of the heavy machined flange. Handle not removable.

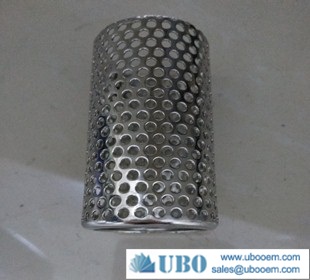

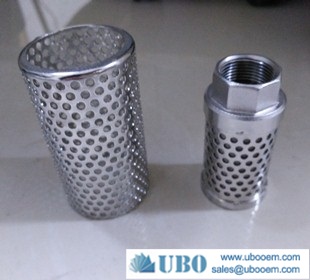

Perforated Strainer Basket

Specification of the Perforated Strainer Basket


NOM. SIZE



10

12

14

16

18

20

24

OD

150

13 1/8

15 7/8

17 1/2

20

21 3/8

23 5/8

28

300

13 1/8

15 7/8

17 1/2

20

21 3/8

23 5/8

25

600

15 1/8

17 3/8

19 1/8

22

13 7/8

26 5/8

30 7/8

ID

9

10 7/8

12 5/8

14 1/2

16 3/8

18 3/8

22 3/8

H

21

25

26

29 1/2

33

37

44

L

14

16 1/2

17

19

21

24

28

NOSE

3

3

4

4

6

6

10

Production And Sales of Perforated Strainer Basket


Packaging Details: Cone Wire Mesh Strainers are packed with cartons and outside with wooden pallets or wooden cases.

Wire Cone Strainers
