Conical Strainers

Product Code: 1658
Category:Cone Filter&Strainer
Material:Stainless Steel wire mesh
Properties:stainless steel filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of Conical Strainers


Conical Strainer is installed on the pipe to remove the larger solid impurities in the fluid so that the machinery, equipment and the instrument can work and operate the normally resulting in a stable procedure and safe produce environment.

Conical Strainers are made of stainless steel woven wire mesh and wire cloth. material is AISI 304, AISI 304L, AISI316 316L, etc. Pack filters and wire mesh discs are mainly used in pharmacy, chemicals, chemical fibers, etc.

Major CONICAL strainers materials available for pack filters and wire mesh discs: stainless steel woven wire cloth, stainless steel sintered web, phosphate bronze wire cloth and brass wire cloth, etc.

CONICAL  strainers Shapes: round, rectangle elliptical, other shapes.
Disc filters are provided in different shapes: Single piece or multiple layered.
Marginal materials for disc filters: stainless steel, aluminum and nickel-plated copper.
Sizes: meeting customers' specific requirements.

Application of Conical Strainers

They are very low cost pipeline strainers that are designed for start-up of new or revamped piping systems. They offer inexpensive protection for costly valves, pumps, meters, and other mechanical equipment.

Feature of Conical Strainers

1.cone tape
2.Compact structure, high filtration efficience
3.Resistance to pressure, low pressure loss, easy to maintain

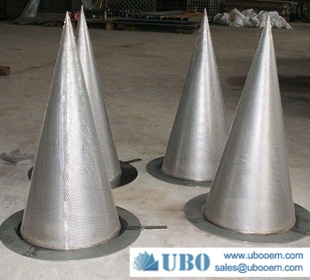

Conical Strainers

Specification of the Conical Strainers

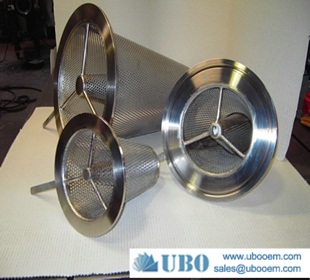

Conical Strainers

· ominal Pipe Size

· B (ID)

· A (OD)

· 150/300# ANSI

· 600# ANSI

· 900# ANSI

·  1500# ANSI

· 3/4

· 0.75

· 2.13

· 2.50

· 2.63

· 2.63

· 1

· 1.00

· 2.50

· 2.75

· 3.00

· 3.00

· 1  1/2

· 1.50

· 3.25

· 3.63

· 3.75

· 3.75

· 2

· 2.00

· 4.00

· 4.25

· 5.50

· 5.50

· 2  1/2

· 2.50

· 4.75

· 5.00

· 6.38

· 6.38

· 3

3.00

5.25

5.75

6.50

6.75

Production And Sales of Conical Strainers


Conical Strainers
