Conical Screens

Product Code: 1878
Category:Centrifuge Screens&Baskets
Material:stainless steel
Properties:wedge wire screen
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

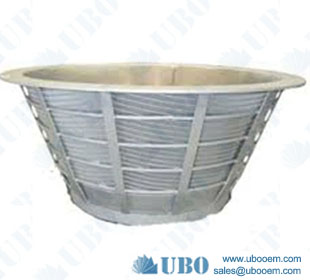

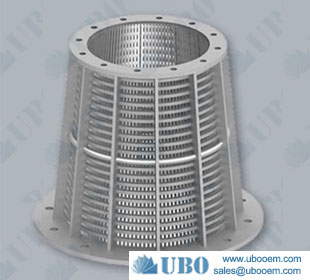

Description of Conical Screens


Conical Screens are all custom made. Length, width, shape and spacing of profile wire are engineered to meet your special job requirements. And the individual wire on the working surface of the wedge wire screen or stainless steel screen can be manufactured at various angles to better serve your needs. Our wedge wire screen sieves, baskets, flat panels and cylinders are used in a wide variety of industries to support, beautify, dewater, deslime, drain and rinse, classify wet/dry, strain, filter, dry and cool.

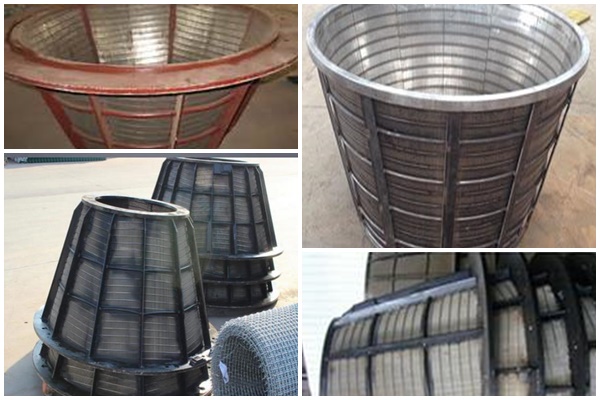

Conical Screens
Characteristics of stainless steel screen basket:

The benefit of Wedge Wire Screen is more open area, have very precise openings, maximum design flexibility, stronger and more durable, economical, easier installation and long-term operating.

Use of stainless steel screen basket:

Stainless steel screen basket is mainly used in centrifuge dewatering, widely used in coal, chemical, and metallurgical industries. Screen basket is a key part of centrifuge .It is high-speed rotating parts. When work, the basket should not only bear the vibration load, but also bear the impact of coal and water. So it requires relatively high strength and precision.

Specification of the Conical Screens


Material:stainless steel

Type:screen basket

Slot:0.2mm-40mm

Heigth: as your request

Radian:15º 30º



Triangle wire size:

Triangle wire Width 1.5mm 2.2mm 2.8mm 3.1mm 3.4mm 5.0mm
height 4.0mm 4.5mm 5.0mm 6.0mm 7.5mm 10.0mm
Slot 0.10mm-10mm

Support rod size:



Support rod Width 1.0mm 1.5mm 1.8mm 2.7mm 3.2mm 3.6mm
height 2.0mm 2.5mm 3.0mm 4.2mm 5.3mm 5.7mm
Slot 0.2mm-5mm

Production And Sales of Conical Screens


Conical ScreensConical Screens
