Wire Mesh Sintered Filter

Product Code: 1693
Category:Sintered Metal Mesh Filter
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Sintered filter
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

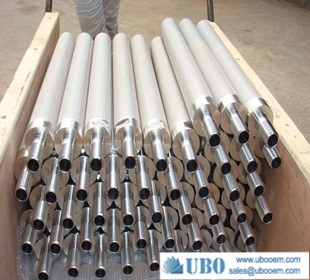

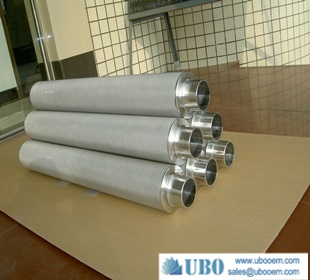

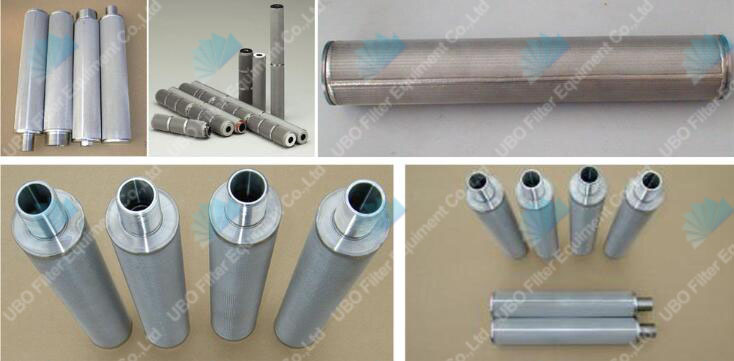

Description of Wire Mesh Sintered Filter

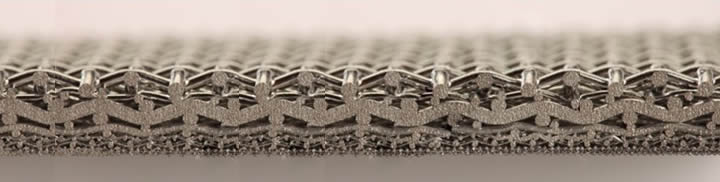

Cylinder Strainer is made of sintered wire mesh laminates, this kind of filter element is comparatively simple in processing compared with pleated filter elements. Normally comes in the form of pipes or cylinder filter. Processes involved include shearing of filter media, welding to form a cylinder, machining of the caps and other parts, soldering of the parts to the cylinder, washing, testing, etc.



Application for Wire Mesh Sintered Filter:



1) Black wire cloth filter disc are mainly used in filtering chemical fiber,polyester film and plastic.

2) Black wire cloth widely used in plastic industry,rubber industry,industrial filtration,petroleum and chemical filtration, grain industry filtration.

3) Black wire mesh also used for all kinds of mold.



Advantage for Wire Mesh Sintered Filter:



-- Excellent capability of filtration

-- Filtration the duct of the oil, improve the quality of the oil;

-- Excellent corrosion, heat, pressure refining, and abrasion resistance;



sintered plastic filter

Specification of the Wire Mesh Sintered Filter


Wire Mesh Sintered Filter Performance Indicators:

Filtering accuracy: 0.2μm, 0.3μm, 0.4μm, 0.5μm, 1.0μm, 3.0μm

Filtration efficiency: 99.999%

Standard membrane tube diameter: Φ18mm (Φ5 ~ Φ70mm)

Standard membrane tube length: 330mm (~ 1000mm)

Standard membrane area: 0.019m2 / support

Can withstand the maximum pressure: 0.08MPa

The maximum working temperature: 130 °C

sintered plastic filter









Mesh/Inch Wire Diameter(mm) Screen Thickness(mm)
105 0.075 0.14
120 0.08 0.15
150 0.06 0.115
165 0.05 0.095
180 0.045 0.085
200 0.04 0.1
230 0.036 0.085
250 0.036 0.088
270 0.035 0.083
300 0.03 0.07
325 0.028 0.065
350 0.03 0.06
400 0.023 0.040
450 0.023 0.042

Production And Sales of Wire Mesh Sintered Filter
