Filter Leaves Spares

Product Code: 1789
Category:Leaf Filters
Material:stainless steel wire mesh
Properties:Filter disc
Application:Filtration

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Filter Leaves Spares


The Filter Leaves Spares are made of 5-layer sintered wire mesh laminates.This kind of filter cartridge has good capacicties such as the corrossion resistance,good air permeability,easy to back wash,high filter rating and etc.

Application for Filter Leaves Spares:

It is suitable for natural gas, artificial coal gas and other corrosive gas, such as, nitrogen, Co2,Propane. butane etc. gas and liquid or liquid and solid separation. It is a essential equipment component for natural gas gathering and transferring pipeline, and gas gathering station of gas transmission line ,compressor station, gas transmission station, piping station,terminal station and all kind of application.

Feature for Filter Leaves Spares:

*Stable pore shapes
*High permeability
*Low pressure drop
*High dirt-holding capacity (longer lifetime)
*High temperature resistance
*High differential pressure with stand capacity
*Strong corrosion resistant
*Back flushing
*Excellent mechanical strength
*No media migration
*Size customization
* Various specifications are available as request.

Characteristics for Filter Leaves Spares:

The benefits of filter disc is high quality and filtration capacity, precise fitting filter elements, optimum cost-performance ratio, constant quality control during production etc. It is widely used in melt filtration.

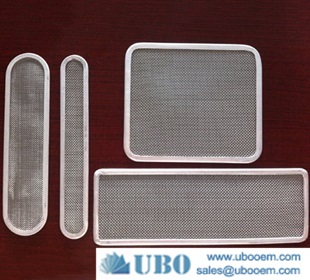

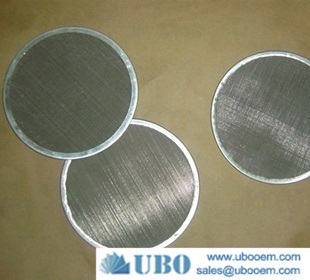

Filter Leaves Spares

Specification of the Filter Leaves Spares


Mesh
Wire dia (mm)
Material (AISI)
12*64
0.58/0.40
304 ,316
24*110
0.36/0.25
304 ,316
14*88
0.50/0.33
304 ,316
30*150
0.18/0.14
304 ,316
40*200
0.14/0.11
304 ,316
50*250
0.10/0.071
304 ,316
80*700
0.06/0.05
304 ,316
165*800
0.071/0.04
304 ,316
200*1800
0.05/0.03
304 ,316
325*2300
0.03/0.025
316L
400*2800
0.03/0.02
316L

Production And Sales of Filter Leaves Spares


Filter Leaves Spares
