Copper Filter Disc

Product Code: 1750
Category:Disc Filters
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:filter disc
Application:waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an aug

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Copper Filter Disc


Filter disc is processed by punching by a special mold, Raw materials used are including stainless steel mesh, other rare metals products.Filters disc are widely used in petroleum, chemical, pharmaceutical etc.


Filter disc material divided into stainless steel wire mesh, copper mesh,stainless steel sintered wire mesh,dutch wire mesh,galvanized square wire mesh,expanded metal cloth,expanded mesh,punching hole mesh and other metal mesh etc

Shape for filter disc:Rectangular, square, circular, oval, circular, hat, waist and shaped.

Stucture for filter disc:Single-layer filter disc ,Double-layer disc filter,Multi-layer filter discs.

Processing: double or triple welding, weld point generally ranging from 4 to 10, also do single and double edging according to customers' request.



Applications for Copper Filter Disc:



Filter disc is widely used in Distillation, absorption, evaporation, filtration and other processing,to serve rubber, plastics industry, sieving of grain and oil, oil, oil refining, chemical industry, light industry, medicine, metallurgy, machinery, ships, automobiles and other industry. It's used to eliminate liquid foam and droplets entrained in the steam or gas as well as an air filter on the car.



Features for Copper Filter Disc:



1) high precision filter: pore stability, will not change the pore pressure changes with the phenomenon. Can effectively remove suspended solids and particulates, excellent filtration, purification effect.

2) permeability, pressure loss is small. Filter composed entirely of spherical powder, high porosity, pore size uniformity and smooth, the initial resistance is small, easy cleaning, regeneration ability, long service life.

3) high mechanical strength, good rigidity, good plasticity, anti-oxidation, corrosion protection without additional framework support, installation and use, easy maintenance, assembly, and can be welding, bonding and mechanical processing.

4) uniform porosity, especially for fluid distribution, homogenization treatment uniformity requirements of the occasion.

5) forming a copper powder products, without cutting, effective utilization of raw materials is high, maximum material savings.

6) Filtration: 5 ~ 50μm.

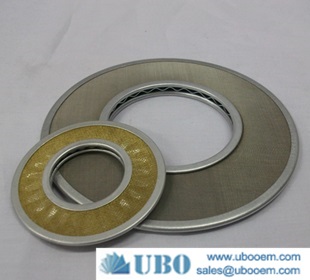

Copper filter disc

Specification of the Copper Filter Disc


Mesh
Wire Dia (mm)
Material (AISI)
12*64
0.58/0.40
304 ,316
24*110
0.36/0.25
304 ,316
14*88
0.50/0.33
304 ,316
30*150
0.18/0.14
304 ,316
40*200
0.14/0.11
304 ,316
50*250
0.10/0.071
304 ,316
80*700
0.06/0.05
304 ,316
165*800
0.071/0.04
304 ,316
200*1800
0.05/0.03
304 ,316
325*2300
0.03/0.025
316L
400*2800
0.03/0.02
316L

Production And Sales of Copper Filter Disc


Package: in wood case

Delivery Time:5-25 days
