welded wedge wire mesh filter

Product Code: 2409
Category:Wedge Wire Screen Cylinders
Material:stainless steel 302,304,304L,316,316L
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of welded wedge wire mesh filter

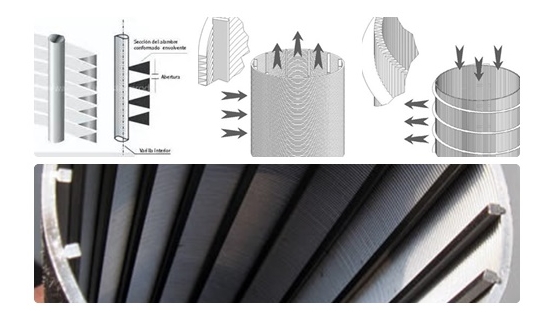

V wire welded wedge wire mesh filter can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.



Applications for Welded Wedge Wire Mesh Filter



Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.

Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.

Used for fiber removal in Starch industry.



Features for Welded Wedge Wire Mesh Filter



1) continuous gaps provide larger aperture ratio.

2) Precision gaps dimensions,long service life.

3) Easy to leakage,difficult to clog,wear-resistance.

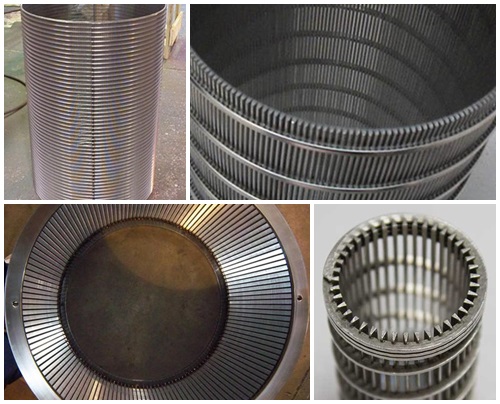

welded wedge wire mesh filter

Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.

Specification of the welded wedge wire mesh filter


Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

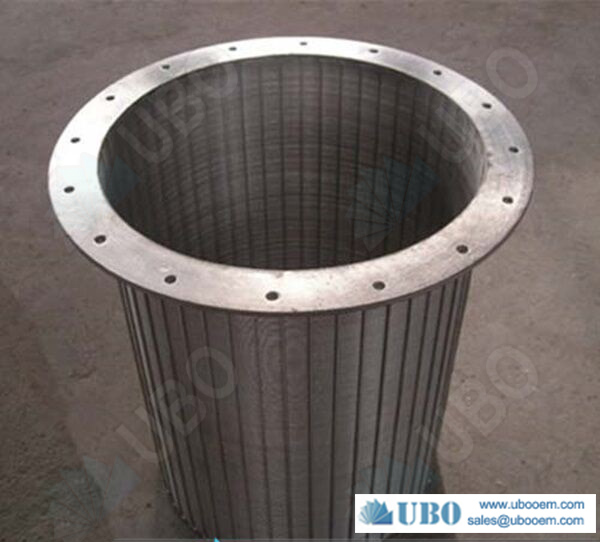

welded wedge wire mesh filter

Production And Sales of welded wedge wire mesh filter


Package: in wood case

Delivery: 10-20 days
