Wire mesh filter cloth packs

Product Code: 1775
Category:Filter Cloth Packs
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter disc
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Wire mesh filter cloth packs


    wire mesh filter are located in the inlet of the pump. The strainer removes contamination from the reservoir fluid before it reaches the pump and the system components. These filters should be set up with an internal bypass valve to prevent starving the pump.
    It is made of Sintered 5-layer or multi-layer Stainless steel wire mesh laminates, it take the advantages of good permeability, high holding dirty capacity, large filter area, long service life, high temperature resistance and corrosion resistance, and cleanable, can be used for many times, it is widely applied in the filtration system of petroleum and chemical industry.

Application for Steel filter cloth packs:


All kinds of high temperature, catalyst , corrosive liquid filtration for petrochemical industry.
All kinds of melt polymer filtration in chemical fiber film fields
high pressure backwashing oil purifier
All kinds of catalyst filtering separation for Pharmaceutical Industry
Gas distribution, liquid Bed orifice plate material

Features for Steel filter cloth packs:

1. Stable high filtering precision: large extension of filtering precision(1-100 μm), the hole is not out of shape easily.
2. High strength, good rigidity: the fourth and fifth layers are the supporting layers, the six layer is the reinforcing layer, so it has high pressure resistance, mechanical strength, easy installation and easy to use.
3. High temperature resistance and corrosion resistance: maximum 480°C.
4. convenient to wash and backwash: It can be used with longer service span.

Characteristics for high quality sintered stainless steel wire mesh filter for oil filtration:

a. Complex structure, high filtering precision
b. Large dirt holding capacity, long service life time
c. Good corrosion resistance and pressure resistance
d. Increased flow quantity per unit area
e. woven type stainless steel mesh, with homogeneous pore distribution, high strength, and easy to clean.

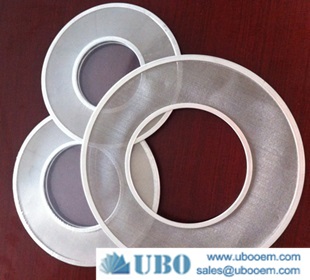

Wire mesh filter cloth packs

Specification of the Wire mesh filter cloth packs


Mesh
Wire Diameter
Micron Absolute
Micron Nominal
12*64
.023/.0165
270~290
200
14*88
.020/.013
220~240
150
24*110
.015/.010
115~123
80
50*250
.0055/.0045
56~63
40
40*200
.007/.0055
70~75
55
80*400
.0049/.0028
40~45
35

Production And Sales of Wire mesh filter cloth packs


Wire mesh filter cloth packs
